As we have discussed many times before, Intel 8th gen processors are quite popular among gamers. These coffee lake processors used LGA 1150 socket motherboards. However, Intel has introduced Z370 chipset which offers the brand new Intel LGA 1151 socket. Fortunately, this socket is designed to replace the older LGA 1150 socket, and it is capable of taking most out of the Intel 8th gen processor. Like most of the people, we also think that the Core i5 8400 is an excellent choice since i3 is a bit less powerful and i7 is way too expensive.
Best Budget Z370 Motherboards
Today, we are discussing some budget motherboards for i5 8400 processor, which uses the Z370 chipset. We have covered all the essential technical details so you can adequately understand these products. Since the pricing of the Z370 platform has considerably decreased from its initial launch prices, they have become attractive. A combination of a mid-tier motherboard and a matched processor would suffice the needs of most users.
How have we selected the Motherboards?
We picked up the parts based on its performance, features, and a sub $200 pricing. Some of these motherboards also come with mATX options, in addition to regular ATX ones. In case if you are concerned about the pricing too high, or missing some key features, do let us know by dropping us a line below in the comments section.
So without any further delay, here is the list of best budget Z370 motherboards for i5 8400 and other Intel 8th gen processors. Here we go:
1. ASRock Z370 Extreme4:
Check On Amazon Check On Newegg
If you don’t like all the overclocking features and the LED’s, you will definitely like all the I/O connector options and the USB headers. You will also block some of the SATA ports, in case if you decide to use all the M.2 ports. In case if you decide to use high-performance DDR4 memory, do not forget to set the BCLK & DRAM Frequency from the BIOS menu. Here are the specs below:
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | ASRock America, Inc. |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 3 x PCIe 3.0 x16 (dual: x8 mode; triple: x8, x8, x4 mode; single card: x16 mode) 3 x PCIe 3.0 x1 1 x M.2 socket |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA SATA-600 / PCIe 3.0 -connectors: 2 x Ultra M.2 |
| Internal Interfaces | 6 x USB 2.0 – header 4 x USB 3.1 Gen 1 – header 1 x audio – header 1 x serial – header 1 x USB-C Gen 1 – header 1 x Thunderbolt – header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
Interface Provided
| Qty | 1, 4 |
| Type | DVI-D, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard/mouse, TOSLINK, USB 3.1 Gen 1, USB-C Gen2, VGA, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), microphone |
| Connector Type | mini-jack |
Miscellaneous
| Product Type | motherboard |
| Included Accessories | 3 x M.2 screws, ASRock SLI_HB_Bridge_2S Card, I/O back cover |
Networking
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network Controller | Intel I219V |
| Network | Gigabit Ethernet |
Audio Output
| Compliant Standards | DTS Connect, Premium Blu-ray audio support, Purity Sound 4, Sound Blaster Cinema 3 |
| Type | sound card |
| Audio Codec | Realtek ALC1220 |
Graphics
| Max Allocated RAM Size | 1024 MB |
| Video Output | graphics adapter (CPU required) |
Supported RAM
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3200 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0 |
| Technology | DDR4 |
| Max Size | 64 GB |
| Supported RAM Integrity Check | Non-ECC, ECC |
Cable Details
| Type | Serial ATA cable |
| Included Qty | 4 |
Dimensions & Weight
| Width | 12 in |
| Depth | 9.6 in |
Software
| Software Included | ASRock A-Tuning, ASRock RGB LED, ASRockXFast LAN, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar |
2. ASUS TUF Z370-PLUS GAMING:
Check On Amazon Check On Newegg
If you like colorful motherboards, this is the one to go with. Overall, a rock-solid performer with little or no tweaks required to overclock your processor, if supported. The board layout is excellent, and you can use all the I/O ports without any hinderances. At this price point, it is highly recommended by us.
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | Asus |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16, x8/x4+x4 modes) 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| Internal Interfaces | 4 x USB 2.0 – header 4 x USB 3.1 Gen 1 – header 1 x SPDIF out – header 1 x audio – header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Interface Provided
| Qty | 1, 2 |
| Type | DVI-D, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard/mouse, USB 2.0, USB 3.1 Gen 1, USB-C, audio line-in, audio line-out, microphone |
| Connector Type | mini-jack |
Miscellaneous
| Compliant Standards | Plug and Play |
| Product Type | motherboard |
| Included Accessories | 1 x M.2 screw, I/O back plate, TUF stickers |
Networking
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network Controller | Intel I219V |
| Network | Gigabit Ethernet |
Audio Output
| Compliant Standards | DTS Custom, High Definition Audio |
| Type | sound card |
| Audio Codec | Realtek ALC887 |
| Audio | High Definition Audio (8-channel) |
Graphics
| Max Allocated RAM Size | 1 GB |
| Video Output | graphics adapter (CPU required) |
Supported RAM
| Bus Clock | 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR4 |
| Max Size | 64 GB |
| Supported RAM Integrity Check | Non-ECC |
Cable Details
| Type | Serial ATA cable |
| Included Qty | 2 |
Dimensions & Weight
| Width | 12 in |
| Depth | 9.6 in |
Software | |
| Software Included | ASUS AI Charger, ASUS AI Suite III, Antivirus (OEM version), drivers & utilities |
3. MSI Z370 GAMING M5:
Check On Amazon Check On Newegg
The UFI (BIOS) settings for this motherboard could be overwhelming for many. However, the default settings run just fine for most users. The multiple fan headers, two PCI-E X16 slots (4x on the second) and abundant SATA ports. You can easily overclock your memory to gain an average of 10-25 FPS in most of the popular titles. We recommend going with a K series processor with this one!
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | MSI Computer Corp. |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 3 x PCIe 3.0 x16 3 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| Internal Interfaces | 4 x USB 2.0 – header 4 x USB 3.1 Gen 1 – header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Interface Provided
| Qty | 1, 2, 3 |
| Type | DisplayPort, HDMI, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), microphone, LAN (Gigabit Ethernet), PS/2 keyboard / mouse, TOSLINK, USB 2.0, USB 3.1 Gen 1, USB-C Gen2, audio line-in |
| Connector Type | mini-jack |
Miscellaneous
| Product Type | motherboard |
| Included Accessories | I/O back plate |
Networking
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network Controller | Killer Gaming E2500 |
| Network | Gigabit Ethernet |
Audio Output
| Compliant Standards | High Definition Audio |
| Type | sound card |
| Audio | High Definition Audio (8-channel) |
Supported RAM
| Bus Clock | 4000 MHz (O.C.) |
| Features | Dual channel memory architecture |
| Technology | DDR4 |
Cable Details
| Type | SLI bridge, Serial ATA cable |
| Included Qty | 1, 4 |
Dimensions & Weight
| Width | 12 in |
| Depth | 9.6 in |
| Height | 1.5 in |
Software
| Software Included | Drivers & utilities |
4. Gigabyte Z370 AORUS Ultra Gaming:
Check On Amazon Check On Newegg
This one from Gigabyte’s portfolio comes at an attractive price along with a lot of features. Marketed as VR ready, this one is ideal for gamers on a budget. The in-built Amp-Up Audio is impressive along with multi-GPU support and ample connectors. This one avoids the fancy bells and whistles and is a no-nonsense rock solid performer.
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | Gigabyte Technology Co. Ltd. |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied)) 1 x PCIe 3.0 x16 (x4 mode (x1 mode if all PCIe x16 slots are occupied)) 1 x PCIe 3.0 x16 (x8 mode) 3 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x M.2 |
| Internal Interfaces | 4 x USB 2.0 – header 2 x USB 3.1 Gen 1 – header 1 x audio – header 1 x USB-C Gen 1 – header 1 x SPDIF out – header 1 x Thunderbolt – header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Interface Provided
| Qty | 1, 2, 4 |
| Type | DVI-D, HDMI, LAN (Gigabit Ethernet), PS/2 keyboard/mouse, TOSLINK, USB 2.0, USB 3.1 Gen 1, USB-C Gen2, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), microphone |
| Connector Type | mini-jack |
Networking
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network | Gigabit Ethernet |
Audio Output
| Compliant Standards | High Definition Audio |
| Type | sound card |
| Audio Codec | Realtek ALC1220 |
| Audio | High Definition Audio (8-channel) |
Graphics
| Max Allocated RAM Size | 1 GB |
| Video Output | graphics adapter (CPU required) |
Supported RAM
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR4 |
| Max Size | 64 GB |
| Supported RAM Integrity Check | Non-ECC, ECC |
Dimensions & Weight
| Width | 12 in |
| Depth | 9.6 in |
Software
| Software Included | @BIOS, Cloud Station, EasyTune, GIGABYTE 3D OSD, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE Smart HUD, GIGABYTE Smart Keyboard, GIGABYTE USB Blocker, GIGABYTE V-Tuner, Norton Internet Security, Smart TimeLock, Xpress Install, cFosSpeed |
5. ASUS PRIME Z370-A:
Check On Amazon Check On Newegg
This motherboard supports 2x PCIe 3.0 x16 Slots (supports x16, x8& x8); 1x PCIe-3.0 x16; 3x PCIe-3.0 x1. The Prime Z370-A has an ultra-efficient heatsink to reduce M.2 SSD temperatures by up to 20°C as claimed by Asus. The VRM area is also simple. Just screw on a 40-50mm fan, mount the bracket on to the heatsink, and hook up the fan up to a header for a targeted cooling booster.
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | Asus |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 4 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x M.2 |
| Internal Interfaces | 4 x USB 2.0 – header 4 x USB 3.1 Gen 1 – header 1 x serial – header 1 x Thunderbolt – header 1 x audio – header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
Interface Provided
| Qty | 1, 2 |
| Type | DVI-D, DisplayPort, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), microphone, HDMI, LAN (Gigabit Ethernet), TOSLINK, USB 2.0, USB 3.1 Gen 1, USB-C Gen2, audio line-in |
| Connector Type | mini-jack |
Miscellaneous
| Product Type | motherboard |
| Included Accessories | 1 x M.2 screw, CPU installation tool, I/O back plate |
Networking
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network Controller | Intel I219V |
| Network | Gigabit Ethernet |
Audio Output
| Compliant Standards | DTS Connect, DTS Headphone:X, High Definition Audio |
| Type | sound card |
| Audio Codec | Realtek ALCS1220A |
| Audio | High Definition Audio (8-channel) |
Graphics
| Max Allocated RAM Size | 1 GB |
| Video Output | graphics adapter (CPU required) |
Supported RAM
| Bus Clock | 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR4 |
| Max Size | 64 GB |
| Supported RAM Integrity Check | Non-ECC |
Dimensions & Weight
| Width | 12 in |
| Depth | 9.6 in |
Software
| Software Included | ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, Cloud GO!, PC Cleaner, drivers & utilities |
Service & Support Details
| Service Included | parts and labor |
| Type | limited warranty |
| Full Contract Period | 3 years |
6. ASUS ROG STRIX Z370-I GAMING:
Check On Amazon Check On Newegg
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | Asus |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x M.2 |
| Internal Interfaces | 2 x USB 2.0 – header 2 x USB 3.1 Gen 1 – header 1 x USB 3.1 Gen 2 – header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Smart Response Technology |
Interface Provided
| Qty | 1, 3, 4 |
| Type | DisplayPort, HDMI, LAN (Gigabit Ethernet), TOSLINK, USB 2.0, USB 3.1 Gen 1, USB-C Gen1, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), microphone |
| Connector Type | mini-jack |
Miscellaneous
| Product Type | motherboard |
| Included Accessories | 2 x M.2 screws, ASUS 2T2R Wi-Fi moving antennas, CPU installation tool, I/O back plate, M.2 2242 mounting kit, RGB (RGBW) LED strip extension cable, STRIX stickers |
Networking
| Data Link Protocol | Bluetooth 4.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network Controller | Intel I219V |
| Network | 802.11a/b/g/n/ac, Bluetooth, Gigabit Ethernet |
Audio Output
| Compliant Standards | High Definition Audio |
| Type | sound card |
| Audio Codec | SupremeFX (S1220A) |
| Audio | High Definition Audio (8-channel) |
Graphics
| Max Allocated RAM Size | 1024 MB |
| Video Output | graphics adapter (CPU required) |
Supported RAM
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR4 |
| Max Size | 32 GB |
| Supported RAM Integrity Check | Non-ECC |
Cable Details
| Type | Serial ATA cable |
| Included Qty | 4 |
Dimensions & Weight
| Width | 6.7 in |
| Depth | 6.7 in |
Software
| Software Included | ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS ROG RAMCache II, Antivirus (OEM version), Overwolf, ROG Aura, ROG CloneDrive, ROG GameFirst IV, drivers & utilities |

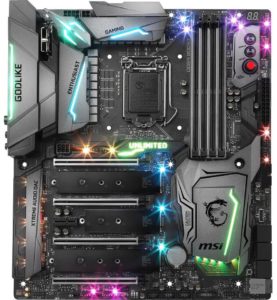

7. MSI Z370 GODLIKE GAMING:
Check On Amazon Check On Newegg
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | MSI Computer Corp. |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 4 x PCIe 3.0 x16 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 3 x M.2 – RAID 0 / RAID 1 / RAID 5 PCIe 3.0 -connectors: 1 x U.2 |
| Internal Interfaces | 6 x USB 2.0 – header 4 x USB 3.1 Gen 1 – header 1 x audio – header 1 x USB-C Gen2 |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6 |
Interface Provided
| Qty | 1, 3, 6 |
| Type | LAN (Gigabit Ethernet), PS/2 keyboard/mouse, audio line-out/headphones, microphone, TOSLINK, USB 3.1 Gen 1, USB-C Gen2, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear) |
| Connector Type | mini-jack, phone stereo 6.3 mm |
Miscellaneous
| Product Type | motherboard |
| Included Accessories | I/O back plate, MSI M.2 Xpander-Z card |
Networking
| Data Link Protocol | Bluetooth 3.0 HS, Bluetooth 4.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac |
| Network Controller | 3 x Killer Gaming E2500 / 1535 |
| Network | 3 x Gigabit Ethernet, 802.11ac, Bluetooth |
Audio Output
| Compliant Standards | High Definition Audio |
| Type | sound card |
| Audio Codec | 2x Realtek ALC1220 |
| Audio | High Definition Audio (8-channel) |
Supported RAM
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR4 |
| Max Size | 64 GB |
Cable Details
| Type | SLI bridge, Serial ATA cable |
Dimensions & Weight
| Width | 12 in |
| Depth | 10.7 in |
Software
| Software Included | MSI Command Center, MSI Gaming Hotkey, MSI Live Update 6, MSI X-BOOST, RAMdisk, drivers & utilities |
8. Gigabyte Z370 AORUS GAMING WIFI – 1.0:
Check On Amazon Check On Newegg
General
| Chipset Type | Intel Z370 |
| Compatible Processors | Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7) |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Manufacturer | Gigabyte Technology Co. Ltd. |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x8 mode) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x M.2 |
| Internal Interfaces | 4 x USB 2.0 – header 4 x USB 3.1 Gen 1 – header 1 x audio – header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Interface Provided
| Qty | 1, 6 |
| Type | HDMI, LAN (Gigabit Ethernet), PS/2 keyboard/mouse, TOSLINK, USB 3.1 Gen 1, USB-C Gen2, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), microphone |
| Connector Type | mini-jack |
Networking
| Data Link Protocol | Bluetooth 2.1 EDR, Bluetooth 3.0, Bluetooth 4.0, Bluetooth 4.1, Bluetooth 4.1 LE, Bluetooth 4.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network | 802.11a/b/g/n/ac, Bluetooth, Gigabit Ethernet |
Audio Output
| Compliant Standards | High Definition Audio |
| Type | sound card |
| Audio Codec | Creative Sound Core3D |
| Audio | High Definition Audio (8-channel) |
Graphics
| Max Allocated RAM Size | 1 GB |
| Video Output | graphics adapter (CPU required) |
Supported RAM
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR4 |
| Max Size | 64 GB |
Dimensions & Weight
| Width | 12 in |
| Depth | 9.6 in |
Software
| Software Included | @BIOS, Cloud Station, EasyTune, GIGABYTE 3D OSD, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE Smart Keyboard, GIGABYTE USB Blocker, GIGABYTE V-Tuner, Norton Internet Security, SBX Pro Studio, Smart TimeLock, Xpress Install, cFosSpeed |
Conclusion
We hope you like our Best Budget Z370 Motherboards for your next PC build. Questions or suggestions are welcome in the comment section below. Cheers!
Affiliate Disclosure: Faceofit.com is a participant in the Amazon Services LLC Associates Program. As an Amazon Associate we earn from qualifying purchases.
