Wireless charging evolved from the original Qi standard to modern magnetic Qi2 and Apple MagSafe systems. The original Qi standard relied entirely on inductive coils and peaked at 15W. In 2023, the Wireless Power Consortium released Qi2 with a Magnetic Power Profile. This update added an alignment ring of magnets to ensure perfect coil placement. The most recent update in April 2025 introduced Qi2 25W, raising the maximum wireless power output to 25W.

Apple introduced MagSafe in 2020. It operates similarly to Qi2. Initial MagSafe versions provided 15W. Starting with the iPhone 16 and 17 series, MagSafe supports 25W when paired with a compatible 30W wall adapter. Compatibility issues frequently occur when users mix older hardware, non-magnetic devices, or underpowered wall adapters with new chargers.

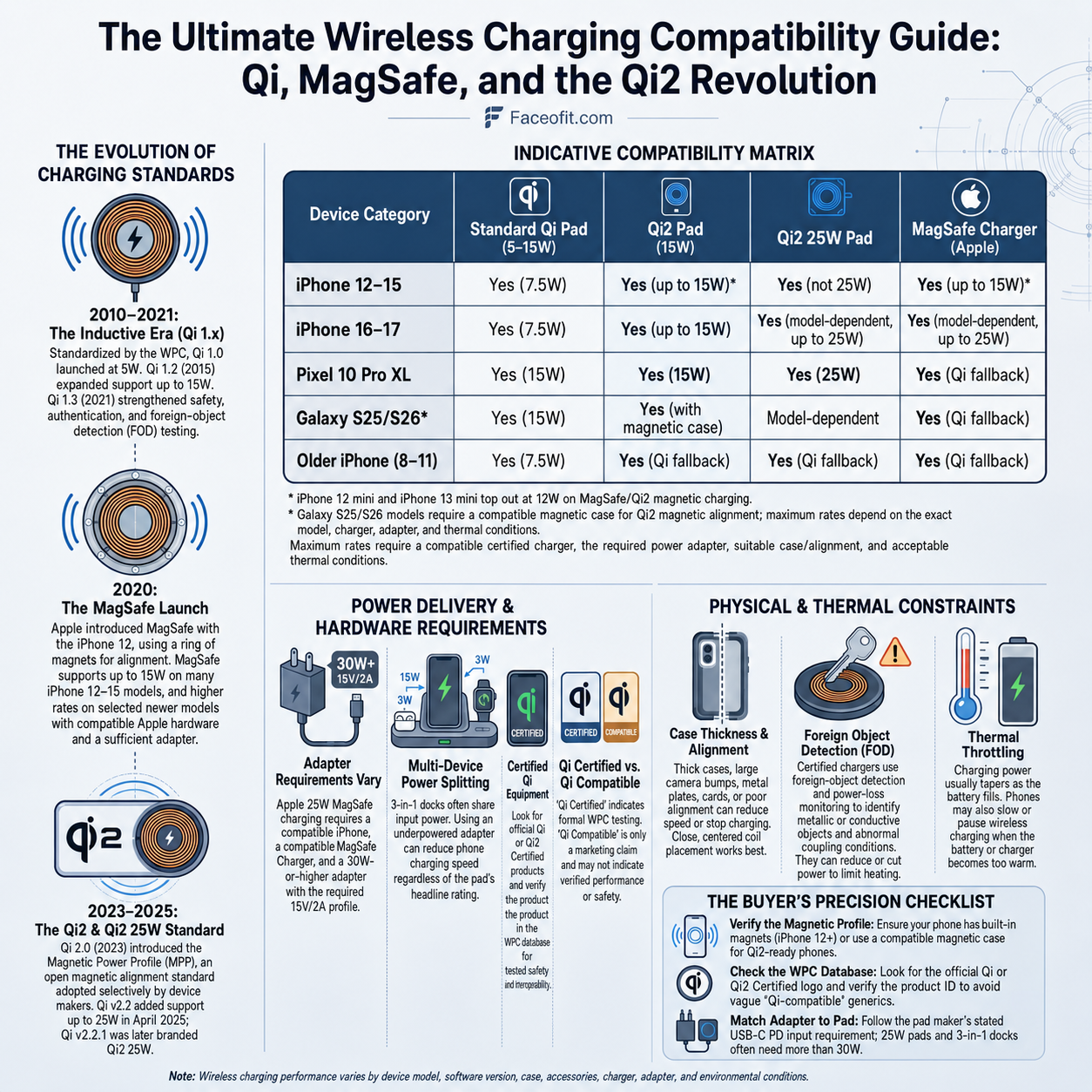

Visual Overview

A quick visual guide to wireless charging standards and compatibility. Click to expand.

Evolution of Charging Speeds

The wattage supported by official standards has increased significantly. The chart below shows maximum speeds supported by each major standard release.

Certification vs Marketing

A Qi-Certified or Qi2-certified charger undergoes laboratory testing for safety and interoperability. It carries the official logo. Products labeled only “Qi-compatible” lack official vetting. They might work but carry reliability risks. The Wireless Power Consortium warns consumers to trust only chargers listed in their official database.

Alignment and Magnetic Profiles

Efficient power transfer requires exact alignment between transmitter and receiver coils. Qi2 and MagSafe use magnets to force this alignment, reducing energy lost as heat.

Qi2 chargers feature a ring of magnets. Devices must have corresponding magnets to attach securely. Some devices, branded as “Qi2-Ready”, support the protocol but lack built-in magnets. These phones require specific magnetic cases to achieve full Qi2 speeds. Without magnets, they fall back to standard Qi speeds and lose efficiency. Recent standards also include an Automatic Alignment Profile to help position non-magnetic devices through small coil adjustments.

Cases and Coil Gaps

Wireless charging operates through a few millimeters of air. Thick cases or bulky attachments increase the separation between coils. Non-metal cases up to 3 or 4 millimeters usually function correctly. Any metal objects like credit cards or holders will block power or trigger safety cut-offs. Cases with built-in magnets do not block power. A misaligned coil drastically reduces efficiency. Ensure the receiver coil sits directly over the pad.

Power Delivery and Adapters

A common mistake involves using an underpowered wall adapter. The wireless pad requires sufficient input power to reach its advertised output.

• MagSafe 15W: Requires a USB-C Power Delivery adapter rated for at least 20W. Check on Amazon
• MagSafe 25W (iPhone 16+): Requires an adapter rated for at least 30W. Check on Amazon
• Qi2 15W pads: Typically require a 20W to 30W adapter.
• Qi2 25W pads: Often require 45W to 60W adapters. Check on Amazon
• Multi-device pads: A pad charging a phone, watch, and earbuds simultaneously requires an adapter that meets the combined wattage demand.

Device Compatibility Matrix

Use the filter below to see how specific phone models interact with various charger types.

Safety and Foreign Object Detection

Modern charging pads monitor safety constantly. Foreign Object Detection prevents keys, coins, or metal cards from absorbing energy and becoming dangerously hot. The charger sends a pulse before supplying power and monitors energy transfer during the session. If it detects an anomaly, it shuts off immediately.

Thermal throttling is another standard protective measure. Wireless energy transfer creates heat. If a device becomes too warm, internal logic reduces the charging rate. iOS devices may pause charging at 80 percent until the battery cools down. Thick phone cases or direct sunlight worsen heat generation and trigger these limits.

Thermal and Battery Throttling

Wireless charging operates at lower efficiency levels than wired charging, typically between 60 and 80 percent. The lost energy converts directly into heat. Both the charging pad and the phone actively monitor internal temperatures.

If temperatures exceed safe thresholds, the device firmware triggers thermal throttling. This reduces the charging speed to protect battery health. Charging through thick silicone cases or running heavy applications while charging exacerbates heat buildup and slows down the process. Ensure the phone stays cool by removing external battery cases, keeping it out of direct sunlight, and placing the charging pad in a well-ventilated area.

Wireless Power Banks and Pass-Through Charging

Many power banks feature magnetic Qi2 charging. Devices from brands like Belkin or UGREEN attach magnetically to phones for up to 15W or 25W of wireless output. High-end power banks support bi-directional fast charging.

Two-Way Charging: Premium models support bi-directional power flow. For example, specific units can charge themselves at 30W via a wired connection while simultaneously outputting 25W wirelessly to your phone.

Some models allow pass-through charging. They can charge a phone wirelessly while the bank itself recharges via a wall plug. Pass-through charging often splits the power budget. This can slow charging on one or both ends. Wireless charging on power banks is less efficient than wired connections. Expect a 25 to 40 percent efficiency loss on top of the base battery draw.

Battery Drain Consideration: Wireless charging creates overhead. You can expect about a 25 to 40 percent efficiency loss compared to a wired connection. An 8,000 mAh power bank will typically yield roughly 5,000 mAh of actual charge delivered to the phone over a wireless pad.

Multi-Device Charging Stations

Many docks combine a phone wireless pad with a watch puck and an earbuds base. These stations share one wall adapter. The adapter and charger design allocate power across the zones. If only the phone is present on some chargers, they will not automatically reallocate the unused power from the watch or earbuds zone. Others dynamically negotiate with the phone to raise output if the extra budget remains unused. A 3-in-1 dock needs a high wattage adapter to support all zones fully.

Cable and Adapter Requirements

Most high-speed Qi pads require a USB-C input with Power Delivery. A quality 60W or higher USB-C cable and wall adapter are recommended for Qi2 15W or 25W pads. Cheap or worn cables cause voltage drops. Some older Qi pads accept Quick Charge adapters but modern pads usually require Power Delivery. The adapter should come from a reputable brand and meet the exact amperage ratings. An under-rated adapter can collapse power delivery.

Vendor Proprietary Modes

Brands like OnePlus and Xiaomi offer chargers capable of reaching 50W. These speeds only work when pairing the brand’s proprietary charger with their specific phone. If you place one of these phones on a standard Qi2 pad, charging often reverts to a base rate of 5W to 10W. Some phone models sold outside the US completely disable Qi standards in favor of regional protocols.

Chinese Market Variability: Many Chinese smartphone models do not support Qi2 or MagSafe standards natively. They rely on USB PPS or UFCS protocols for wired charging and use closed, proprietary formats for wireless speeds. US-spec models often disable these proprietary protocols entirely. As a result, placing a high-end phone from these regions on a standard Qi2 pad might result in very slow charging speeds around 5W.

Troubleshooting Common Issues

If your wireless charging setup underperforms, several common culprits might be responsible.

• Slow or No Charge: Verify your adapter and cable meet the required specifications. Swap to a known good 30W Power Delivery adapter to test. Remove thick cases and ensure the phone aligns properly on the pad.
• Phone Overheating: Remove the case and pause charging to let the device cool. Phones typically throttle or pause charging at 80 percent if the battery temperature runs high. Charge in a cooler environment if possible.
• Foreign Object Alarm: If the pad reports an error or stops transferring power, check for metal objects, magnetic wallet clips, or keys near the pad. Removing these obstructions usually resolves the error.
• Error Messages: Phones and smartwatches may display “Charging on hold” or similar warning notifications. These alerts typically indicate coil misalignment or the detection of foreign metal. Reorient the device to fix the issue.
• Incompatible Hardware: Older phones restricted to the original Qi standard will not attach magnetically to MagSafe or Qi2 pads. If a MagSafe charger fails to charge an older device, test the phone on a standard, flat Qi pad. Conversely, Qi2-ready phones need a magnetic case to activate the Magnetic Power Profile.
• Power Splitting Errors: On multi-device docks, if one device charges while another fails, remove the idle device. Test each slot individually. Ensure your wall adapter supplies enough wattage. Sometimes unplugging and replugging the pad resets the power negotiation.
• Firmware Limits: Certain phones cap wireless charging speeds on non-native pads. iPhones limit charging to 7.5W unless they detect official MagSafe hardware. Some Android devices apply similar caps to 10W or 15W on generic pads. Using the manufacturer’s recommended charger is the only solution here.

Buyer’s Checklist Template

Frequently Asked Questions
