Building a high-performance PC in 2025 presents a new challenge: taming the immense power draw of modern graphics cards. The transition to the single 16-pin power connector brought simplicity, but the initial 12VHPWR standard had its share of problems. Now, the refined and safer 12V-2×6 connector, paired with the ATX 3.1 PSU standard, has become the new benchmark for safety and performance.

Note: If you buy something from our links, we might earn a commission. See our disclosure statement.

But with every major brand releasing new models, how do you choose the right one for your rig? It’s more than just wattage—it’s about understanding power excursions, efficiency, OEM quality, and the right feature set for your budget.

This definitive guide from Faceofit.com demystifies the world of modern power supplies. We’ll break down the crucial differences in the new standard, walk you through our comprehensive buyer’s compendium, and provide expert recommendations for every type of build. Use our interactive market survey to filter and compare the latest models from Corsair, Seasonic, be quiet!, and more. By the end, you’ll have all the knowledge you need to make a confident and informed purchase. The Definitive Guide to 12V-2x6 Power Supplies | An Interactive Report

The Definitive Guide to 12V-2x6 Power Supplies

An expert report on selection and recommendations for the modern PC builder.

The New Power Standard

The landscape of high-performance PC building is defined by a relentless pursuit of power. As GPUs like the NVIDIA RTX 40 and 50-series push consumption to new heights, the industry needed a new solution. The old way, using multiple bulky 8-pin PCIe cables, was becoming an unwieldy "octopus" in our cases, complicating builds and impeding airflow.

🐙

Legacy "Octopus"

Multiple 8-pin cables

→

12V-2x6 Connector

Single 600W+ cable

To solve this, the PCI-SIG introduced the 12VHPWR connector, designed to deliver up to 600W through a single, compact cable. However, early reports of melting connectors revealed that the design was susceptible to user error. This led to an essential evolution: the revised and more robust 12V-2x6 standard (also known as H++), which mechanically enforces a safe connection. This guide is your map to navigating this new, safer, and more powerful world.

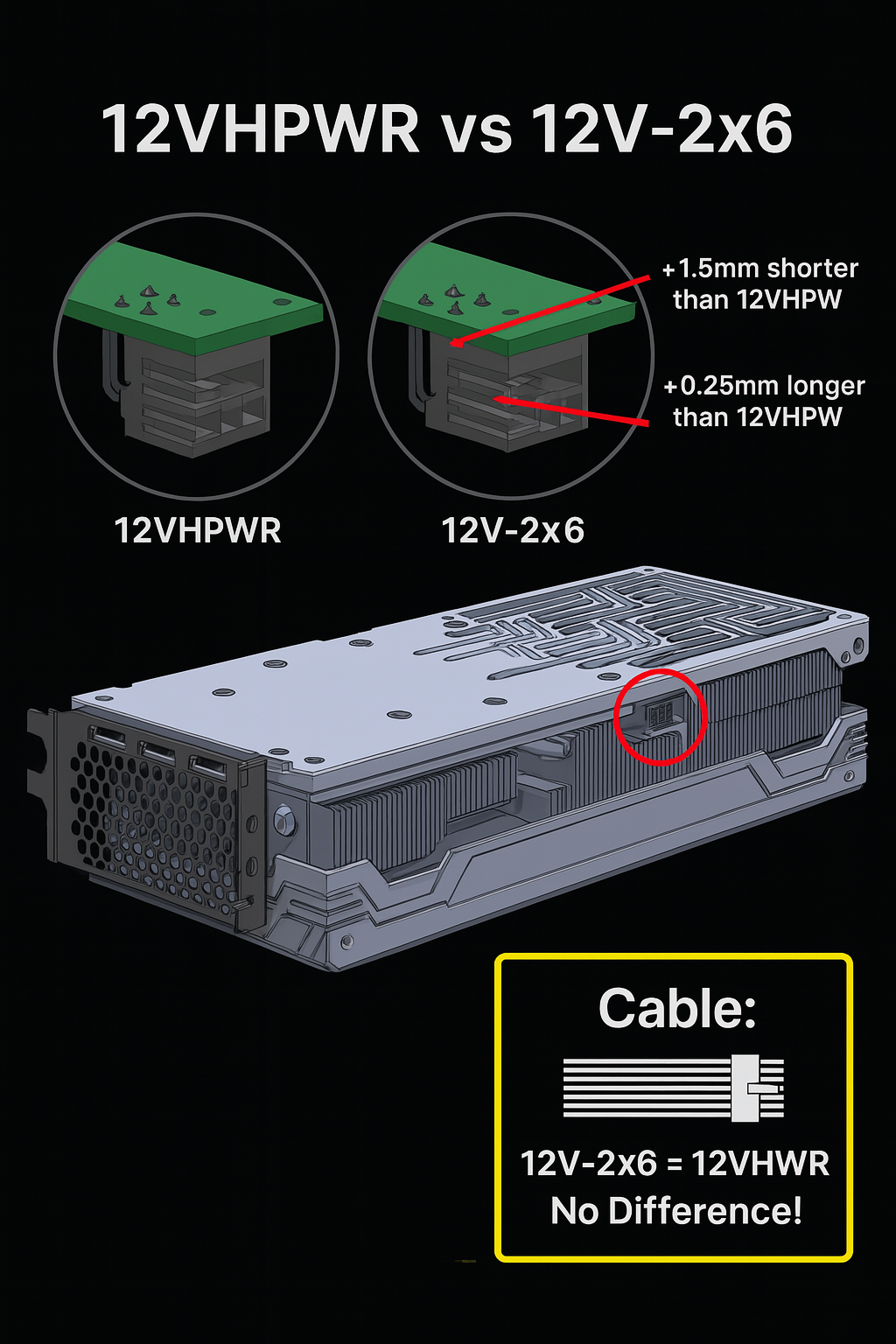

Deconstructing the 12V-2x6 Connector

Mechanical Revisions for Safety

The change from 12VHPWR to 12V-2x6 is all about making the connection foolproof. It's not a total redesign, but a set of smart, targeted changes to the socket on your GPU and PSU to prevent thermal failure from a partially-seated plug.

1. Extended Conductor Terminals (+0.25mm)

Longer power pins create a larger contact area, reducing electrical resistance and heat generation.

2. Recessed Sense Pins (-1.5mm)

These crucial communication pins are shorter. They only make contact when the plug is fully and securely seated. Without this connection, the GPU will not draw high power, preventing damage from a poor connection.

The recessed sense pins are the key safety interlock of the 12V-2x6 design.

12VHPWR (H+) vs. 12V-2x6 (H++)

Feature	12VHPWR (H+)	12V-2x6 (H++)	Real-World Implication
Sense Pin Length	Standard	Recessed (-1.5mm)	Prevents high power draw unless fully seated.
Safety Mechanism	Relies on user diligence	Mechanical Interlock	Dramatically reduces risk of thermal failure.
Cable Compatibility	Forward-compatible	Backward-compatible	Your high-quality 12VHPWR cables are still good! The change is in the socket, not the plug.

The Modern PSU Buyer's Compendium

Wattage & ATX 3.1

ATX 3.1 PSUs are built to handle huge, brief power spikes (excursions) from modern GPUs—up to 3x their rated power—preventing crashes. This is non-negotiable for a stable high-end system.

Pro Tip: Aim for your typical gaming load to be 50-80% of the PSU's max wattage for peak efficiency and longevity.

Efficiency & Noise

Higher efficiency (80 Plus) means less heat. For noise, look for Cybenetics Lambda ratings (A is quieter). Gold efficiency and Lambda A- is a great target.

Modularity

Fully modular PSUs are the modern standard. You only use the cables you need, resulting in a cleaner build, better airflow, and easier installation.

Non-Modular

Semi-Modular

Fully-Modular

OEM & Warranty

Top brands (Corsair, Seasonic) use trusted Original Equipment Manufacturers (OEMs). A long warranty (7-12 years) is the best sign of quality.

Top OEMs: Seasonic, Super Flower, CWT, FSP, HEC.

Internal Components

Look for PSUs that advertise "100% Japanese Capacitors." These are more durable and reliable, especially at high temperatures, ensuring a longer lifespan for your PSU.

Protection Circuits

A full suite of protections is non-negotiable. It's the PSU's job to sacrifice itself to save your expensive components in case of an electrical fault.

Market Survey: 12V-2x6 PSUs

The market is full of ATX 3.1 / 12V-2x6 compliant options. Use our interactive table to filter, sort, and find the perfect PSU for your build.

Manufacturer	Model Series	Wattage	80+ Rating	Form Factor	Warranty	Shop

Expert Recommendations

Best Overall Performance

Seasonic PRIME TX ATX 3.1

For the cost-no-object build. 80+ Titanium efficiency, legendary reliability, and a 12-year warranty. This is the benchmark.

Check on Amazon Check on Newegg

Alternative: be quiet! Dark Power 13

Best Value Proposition

Corsair RMx Series (2024)

The sweet spot for most enthusiasts. 80+ Gold, quiet operation, and a 10-year warranty. A proven performer built on a top-tier CWT platform.

Check on Amazon Check on Newegg

Alternatives: Seasonic Focus GX, be quiet! Pure Power 12 M

Best for SFF Builds

Corsair SF-L Series (SF1000L)

Dominating the small form factor space. High power in a compact size with a larger, quieter fan and flexible cables for tight builds.

Check on Amazon Check on Newegg

Alternative: ASUS ROG Loki SFX-L

The Cable Ecosystem

The new standard has created a diverse ecosystem of cables and adapters. Your choice impacts aesthetics, flexibility, and ease of building.

Native Port vs. Adapter

PSUs connect to your GPU in two ways. Both are electrically sound, but offer different advantages.

Native 12V-2x6 Port

A direct 16-pin to 16-pin cable. It's the cleanest look, minimizing connections.

Adapter Cable (2x 8-pin to 12V-2x6)

Plugs into two standard 8-pin ports on the PSU. More flexible and arguably more robust, as it draws power from two separate, proven ports.

Angled & Custom Cables

Third-party cables solve practical problems and allow for aesthetic customization.

90-Degree Angled Connectors

A critical innovation. These reduce stress on the GPU port and are often necessary to close the side panel on narrower cases.

Custom Sleeved Cables

From brands like CableMod, these offer full color customization and are often perceived as higher quality than stock cables, making them both an aesthetic and functional upgrade.
