If you are looking for a set of phones with LTPO OLED display tech, we have some options for you. But first, a quick introduction to the tech.
Note: If you buy something from our links, we might earn a commission. See our disclosure statement.
LTPO (low-temperature polycrystalline oxide) is a backplane technology implemented in OLED displays. It allows the screens to work at variable refresh rates as well as consume less battery compared to a standard OLED display.
Also Read: Comparing E4 AMOLED vs Fluid AMOLED
But LTPO OLED displays are currently found only on flagship devices. It would take time to see this technology implemented in more devices at affordable prices.

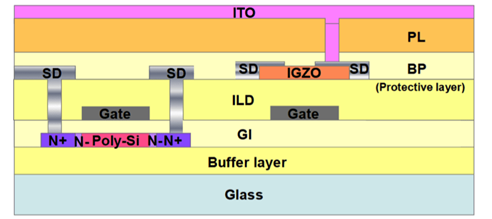

LTPO is identified as a tweaked version of OLED. However, it is still categorized differently from a standard OLED panel. An OLED display contains an LTPS backplane, whereas an LTPO OLED panel includes a blend of LTPS and IGZO backplanes.
In the case of Apple, it utilizes LTPS TFTs in combination with Indium Gallium Zinc Oxide (IGZO) TFTs. Samsung also has its proprietary technology for LTPO sAMOLED panels utilizing a mix of LTPS TFTs and Hybrid-oxide and Polycrystalline silicon (HOP).
Other displays like LTPS (low-temperature polycrystalline silicon) displays don’t allow dynamic refresh rates except when an extra component is deployed.
Due to this reason, plenty of phones can only switch between 60 Hz and 120 Hz, or 90 Hz and 120 Hz refresh rates. On the other hand, LTPO phone displays can support a refresh rate as low as 1 Hz.
The battery consumption of the display is a priority area for further optimization. Therefore, many phone manufacturers are switching to LTPO panels on flagship phones.
In the structure of LTPO technology, LTPS devices and oxide devices can be flexibly switched at different stages to maximize the advantages of each, and switching to oxide devices in the light-emitting stage will enable low-frequency driving that ordinary LTPS cannot achieve.
And in the OLED panel display static screen, switching to oxide semiconductor devices can maintain the electrical signal in the capacitor (basically no leakage); when the screen changes, you can switch to LTPS devices, and the electrical signal in the capacitor continues to LTPS devices, without frequent replenishment, to achieve a dynamic refresh rate display.
While avoiding the LTPS high refresh rate display low frame, it enables dynamic refresh rate display. It avoids the unnecessary power consumption caused by frequent charging of capacitors when LTPS displays low frame rates.
An LTPO OLED display can dynamically switch between refresh rates. In this process, it doesn’t use an additional hardware component between the GPU and the graphics controller.
Consequently, it saves a significant amount of battery life because your phone need not have to render as many frames for the task being carried out.
Companies came up with LTPO technology to solve this problem by variably changing the refresh rate. As you might expect, high refresh rates consume more battery, and lower numbers translate to less battery use.
By dynamically changing the refresh rate, OLED displays cut down power consumption.
LTPO process is relatively more complex than LTPS, and at this stage, the related OLED panels are challenging to manufacture, pricey, and have low yields.
When looking at a static image, there is a drop in the refresh rate. This results in a reduction in processor load and power needs. On the other hand, it can be escalated to the maximum when playing a game during which the extra frames prove to be helpful.
Table of Contents
Check on Newegg
| Check on Flipkart
7. Realme GT2 Pro:
Check on Realme.com | Check on Flipkart
Release date: 8th January 2022
GPU: Adreno 730
50 MP, f/1.8, 24mm (wide), 1/1.56″, 1.0µm, multi-directional PDAF, OIS 50 MP, f/2.2, 15mm, 150˚ (ultrawide), 1/2.76″, 0.64µm 3 MP, f/3.3, 20mm (microscope), AF, 40x magnification
Expected Release date: April 2022
50 MP, f/1.8, (wide), 1/1.57″, 1.0µm, Dual Pixel PDAF, Laser AF, OIS 8 MP, f/3.4, 125mm (periscope telephoto), PDAF, OIS, 5x optical zoom 12 MP, f/2.0, 47mm (telephoto), PDAF, 2x optical zoom 48 MP, f/2.2, 14mm, 114˚ (ultrawide)
Check on Amazon India
Release date: 31st December 2021
50 MP, f/1.9, 24mm (wide), 1/1.28″, 1.22µm, Dual Pixel PDAF, OIS 50 MP, f/1.9, 48mm (telephoto), PDAF, 2x optical zoom 50 MP, f/2.2, 115˚ (ultrawide)
Release date: 19th March 2021
Octa-core (1×2.84 GHz Kryo 680 & 3×2.42 GHz Kryo 680 & 4×1.80 GHz Kryo 680
Qualcomm SM8350 Snapdragon 888 5G (5 nm)
GPU: Adreno 660
50 MP, f/1.8, 26mm (wide), 1/1.56″, 1.0µm, multi-directional PDAF, OIS 13 MP, f/2.4, 52mm (telephoto), 1/3.4″, 1.0µm, 2x optical zoom, PDAF 50 MP, f/2.2, 16mm, 110˚ (ultrawide), 1/1.56″, 1.0µm, multi-directional PDAF 3 MP, f/3.0, (microscope), AF, ring flash, 60x magnification
Type: Li-Po 4500 mAh (non-removable)
Check on Amazon
Release date: 14th March 2022
Octa-core (1×3.0 GHz Cortex-X2 & 3×2.50 GHz Cortex-A710 & 4×1.80 GHz Cortex-A510) -Global Octa-core (1×3.05 GHz Cortex-X2 & 3×2.85 GHz Cortex-A710 & 4×1.80 GHz Cortex-A510) -China
Qualcomm SM8450 Snapdragon 8 Gen 1 (4 nm) -Global MediaTek Dimensity 9000 (4 nm) -China
Adreno 730 – Global Mali-G710 MC10 – China
Memory and Storage:
256 GB 8 GB RAM, 256 GB 12 GB RAM, 512 GB 12 GB RAM
50 MP, f/1.7, 25mm (wide), 1/1.56″, 1.0µm, multi-directional PDAF, OIS (3-axis sensor-shift, 2-axis lens-shift) 13 MP, f/2.4, 52mm (telephoto), 1/3.4″, 2x optical zoom, PDAF 50 MP, f/2.2, 15mm, 110˚ (ultrawide), 1/1.56″, 1.0µm, multi-directional PDAF
Audio: Loudspeaker with stereo speaker
Type: Li-Po 5000 mAh (non-removable)
Charging: Fast charging 80W, 50% in 12 min; Fast wireless charging 50W, 100% in 47 min; Reverse wireless charging 10W; USB Power Delivery
Powered by the cutting-edge Qualcomm Snapdragon 8 Gen 1 processor, this OnePlus phone supports blazing-fast 5G speeds. The Smart 120 Hz display comes with LTPO 2.0 panel. The 6.7″ QHD+ screen dynamically varies refresh rate from 1Hz and up to 120Hz. So, it conveys a fluid user experience with optimized battery performance.
With the help of the triple camera system (co-developed with Hasselblad) that features a 48 MP rear Sony IMX sensor, this phone can capture magnificent natural colors and record up to 8k video.
You can capture the larger picture through a 150º ultra-wide camera. The versatile 50MP ultra-wide sensor can record with an extensive 150º field of view. This allows you to enhance your creativity.
This OnePlus phone can process 64x more color information through the latest OnePlus Billion Color Solution. So, it allows you to capture and reproduce the most precise colors.
For mobile gaming enthusiasts, the built-in HyperBoost Gaming Engine is handy. It elevates your gaming experience by optimizing performance and graphics and the next-gen heat dissipation mechanism. Therefore, 10 Pro 5G has become an outstanding choice for mobile gamers.
Being Alexa hands-free capable, you can use the Alexa hands-free after downloading the Alexa app. You can make calls, play music, listen to music, navigate the web, open apps, and more by just using your voice.
Accessories in the pack: Type-C cable, 65W SUPERVOOC power adapter, USB dongle (Type-A to Type-C), SIM tray ejector, quick start guide, safety information, warranty card, and welcome letter
Release date: 13th January 2022
Octa-core (1×3.00 GHz Cortex-X2 & 3×2.50 GHz Cortex-A710 & 4×1.80 GHz Cortex-A510)
Qualcomm SM8450 Snapdragon 8 Gen 1 (4 nm)
48 MP, f/1.8, 23mm (wide), 1/1.43″, 1.12µm, multi-directional PDAF, Laser AF, OIS 8 MP, f/2.4, 77mm (telephoto), 1.0µm, PDAF, OIS, 3.3x optical zoom 50 MP, f/2.2, 14mm, 150˚ (ultrawide), 1/2.76″, 0.64µm, AF
Check on Amazon | Check on Newegg
The latest 6.7-inch LTPO OLED Smooth display is now made from the toughest Gorilla Glass. Hence, the phone stays protected in any condition. With this phone, you will enjoy responsive gaming and browsing with a refresh rate of up to 120 Hz. Moreover, the fast-charging all-day battery saves power for apps you use frequently.
Check on Amazon India
Obtain a fast and smooth experience with the OnePlus Pro 5G. The entire performance is efficient with the powerful Snapdragon 888 CPU, next-gen RAM, and fastest ever 5G. The Snapdragon 888 processor contributes to low latency and maximum frame rates. The premium design shows an exquisite appearance.
The Fluid AMOLED 120 Hz technology with LTPO panel conveys ultra-smooth gameplay in all frames. The gaming mode is optimized for smoother gameplay.
The phone is implemented with a custom-designed, multi-layered cooling mechanism for efficient heat dissipation. Due to the big vapor chamber and thick graphite layers, heat is quickly redirected away from major thermal components. So, you will enjoy the smooth, fast, and incredible performance even during gaming.
Accessories in the pack are a 65 power adapter, Type-C to Type-C cable, SIM tray ejector, quick start guide, safety information, warranty card, welcome letter, LOGO sticker, screen protector, and case
Release date: 30th March 2021
Special features: Adaptive Display, Night Mode, Camera Reading Mode, Vibrant Color Effect Pro, Ultra-high Video Resolution, Motion Graphics Smoothing, Nightscape Super Mode, Macro Mode, Pro mode, UltraShot HDR, Portrait mode, Tilt-shift mode, Smart Scene Recognition, Focus, Panorama, Peaking, Filters, Super Stable, Video HDR, Video Nightscape, Video Portrait, Timelapse, Hyperlapse, Focus Tracking, Hyper Touch, IP68 dust/water resistant (up to 1.5m for 30 mins)
These LTPO OLED phones benefit you with a fast refresh rate, battery saving, quick switching between apps, navigation, etc., for a seamless user experience.
They also pack in enough RAM, storage space, and processing power for efficient performance overall.
