Wireless access points or WAPs are configuration nodes that are used to expand a local area network or LAN. These small pieces of wireless hardware allow mobile devices with wireless functionality to connect to the internet with any supported wireless standards including Bluetooth or Wi-Fi. These WAPs use radio transmitters and antennae to provide connectivity between the wireless device and the internet / Local area network (LAN). So basically, these WAPs are a great way to enhance the coverage of your Local Area Network or connecting to the internet on the go. If you are in the market looking for the best Outdoor Wireless access point, then read along to know more.
Best Outdoor Wireless Access Point
Today, we are going to discuss some of the best dual band outdoor wireless access point devices available out there in the market. We will be covering all the technical details and specifications which will help you to understand more about these products. So without any more delay, here is our list of best outdoor wireless access point devices with dual-band wireless support. Here you go:
1. EnGenius ENS1750:
$170.16 on Amazon
GENERAL
| Form Factor |
external |
| Power Over Ethernet (PoE) |
PoE |
| Ruggedized Design |
outdoor |
| Authentication Method |
RADIUS |
| Height |
11.8 in |
| Ruggedized Design |
Outdoor |
| Depth |
1.3 in |
| Manufacturer |
EnGenius Tech Inc. |
NETWORKING
| Frequency Band |
2.4 GHz, 5 GHz |
| Type |
Wireless access point |
| Data Link Protocol |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Features – |
Auto Channel Select (ACS), E-mail alert, manageable, power over Ethernet (PoE), reset button, roaming function, tagged VLAN, wireless bridge mode, MAC address filtering, MIMO technology, Quality of Service (QoS), RADIUS support, VLAN support, Wireless Distribution System (WDS) support, firmware upgradable, hidden SSID |
| Compliant Standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3at |
| Wireless Protocol |
802.11a/b/g/n/ac |
| Remote Management Protocol |
CLI, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH |
| Data Transfer Rate |
1750 s |
| Wi-Fi Bands |
2.4 GHz, 5 GHz |
| Spread Spectrum Method |
DSSS, OFDM |
| Encryption Algorithm |
AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Status Indicators |
Power, WLAN, LAN |
| Line Coding Format |
64 AM, 256 QAM, BPSK, QPSK, 16 QAM |
| Authentication Method |
RADIUS |
| Power Over Ethernet (PoE) |
PoE |
| Line Coding Format |
16 QAM, 256 QAM, 64 QAM, BPSK, QPSK |
ANTENNA
| Antenna |
Internal |
| Gain Level |
5 dBi |
| Antenna Form Factor |
internal |
PARAMETERS
| Min Operating Temperature |
-4 °F |
| Max Operating Temperature |
140 |
| Humidity Range Operating |
0 – 90% (non-condensing) |
DIMENSIONS & WEIGHT
| Width |
7.1 in |
| Depth |
1.3 in |
| Height |
11.8 in |
| Weight |
30.23 oz |
2. EnGenius ENH1750EXT:
$509.38 on Amazon
GENERAL
| Power Over Ethernet (PoE) |
PoE+ |
| Ruggedized Design |
outdoor |
| Authentication Method |
Basic Service Set Identifier (BSSID), RADIUS |
| Height |
11.2 in |
| Ruggedized Design |
Outdoor |
| Depth |
2.1 in |
| Manufacturer |
EnGenius Tech Inc. |
NETWORKING
| Frequency Band |
2.4 GHz, 5 GHz |
| Type |
Wireless access point |
| Connectivity Technology |
wireless |
| Data Link Protocol |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features |
3T3R MIMO technology, E-mail alert, rugged, Mesh networking, Multiple SSID support, Quality of Service (QoS), Quantum Beam technology, SSH support, VLAN support, Wireless Distribution System (WDS) support, reset button |
| Compliant Standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Wireless Protocol |
802.11a/b/g/n/ac |
| Remote Management Protocol |
CLI, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH |
| Wi-Fi Bands |
2.4 GHz, 5 GHz |
| Spread Spectrum Method |
DSSS, OFDM |
| Encryption Algorithm |
AES, 128-bit WEP, 64-bit WEP, 152-bit WEP, TKIP, WPA-Enterprise, WPA2-Enterprise |
| Status Indicators |
Power, WLAN, LAN |
| Line Coding Format |
CCK, 64 QAM, BPSK, QPSK, 16 QAM |
| Authentication Method |
RADIUS, Basic Service Set Identifier (BSSID) |
| Power Over Ethernet (PoE) |
PoE+ |
| Line Coding Format |
16 QAM, 64 QAM, BPSK, CCK, QPSK |
ANTENNA
| Antenna |
External detachable |
| Antenna Qty |
6 |
| Directivity |
omnidirectional |
| Antenna Form Factor |
external detachable |
ENVIRONMENTAL PARAMETERS
| Min Operating Temperature |
-4 °F |
| Max Operating Temperature |
158 |
| Humidity Range Operating |
0 – 90% (non-condensing) |
DIMENSIONS & WEIGHT
| Width |
8.6 in |
| Depth |
2.1 in |
| Height |
11.2 in |
| Weight |
4.17 lbs |
SERVICE & SUPPORT DETAILS
| Type |
limited warranty |
| Full Contract Period |
1 year |

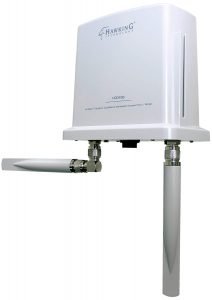

3. Hawking Hi-Gain Outdoor Dual-Band Wireless-N Access Point/Bridge:
$257.84 on Amazon
General
| Height |
3.5 in |
| Depth |
6.9 in |
| Manufacturer |
Hawking Technologies |
Power Device
| Nominal Voltage |
AC 120/230 V |
| Frequency Required |
50/60 Hz |
| Type |
external power adapter |
Networking
| Type |
Wireless access point |
| Connectivity Technology |
wireless |
| Data Link Protocol |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features |
2T2R MIMO technology, DHCP server, Wireless Distribution System (WDS) support, auto-uplink (auto MDI/MDI-X), switching, wireless bridge mode |
| Compliant Standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Wireless Protocol |
802.11a/b/g/n |
| Wi-Fi Bands |
2.4 GHz, 5 GHz |
| Encryption Algorithm |
128-bit WEP, 64-bit WEP, WPA, WPA2 |
Antenna
| Antenna Qty |
2 |
| Gain Level |
5 dB |
| Antenna Form Factor |
external detachable |
Environmental Parameters
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
10 – 90% (non-condensing) |
Cable Details
| Type |
network cable |
| Included Qty |
1 |
Dimensions & Weight
| Width |
6.3 in |
| Depth |
6.9 in |
| Height |
3.5 in |
| Weight |
1.54 lbs |
4. Ubiquiti Unifi UAP-Pro:
Check on Amazon on Amazon
GENERAL
| Power Over Ethernet (PoE) |
PoE |
| Manufacturer |
Ubiquiti Networks |
POWER DEVICE
| Power Consumption Operational |
12 Watt |
NETWORKING
| Data Transfer Rate |
750 ps |
| Max Range Open Space |
400 |
| Features |
wall mountable |
| Data Link Protocol |
IEEE 802.11n |
| Compliant Standards |
IEEE 802.11n |
| Connectivity Technology |
wireless |
MISCELLANEOUS
ANTENNA
| Antenna |
Internal integrated |
ENVIRONMENTAL PARAMETERS
| Min Operating Temperature |
14 F |
| Max Operating Temperature |
158 °F |
DIMENSIONS & WEIGHT
| Width |
7.9 in |
| Depth |
7.9 in |
| Height |
1.4 in |
| Weight |
10.5 oz |
5. Ruckus ZoneFlex R510:
$230.00 on Amazon
GENERAL
| Power Over Ethernet (PoE) |
PoE |
| Authentication Method |
Active Directory, LDAP, RADIUS |
| Height |
1.5 in |
| Depth |
6.2 in |
| Manufacturer |
Ruckus Wireless |
MODEM
NETWORKING
| Type |
Wireless access point |
| Connectivity Technology |
wireless |
| Data Link Protocol |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Features |
BeamFlex+ Smart Antenna Technology, DHCP support, routing, security lock slot (cable lock sold separately), MU-MIMO technology, NAT support, Quality of Service (QoS), VLAN support, auto-uplink (auto MDI/MDI-X), beamforming technology, load balancing, power over Ethernet (PoE) |
| Compliant Standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, Wi-Fi CERTIFIED |
| Wireless Protocol |
802.11a/b/g/n/ac |
| Remote Management Protocol |
CLI, HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, TR-069, Telnet |
| Wi-Fi Bands |
2.4 GHz, 5 GHz |
| Encryption Algorithm |
AES, WPA2, WPA-PSK |
| Status Indicators |
Power, status |
| Authentication Method |
RADIUS, LDAP, Active Directory |
| Power Over Ethernet (PoE) |
PoE |
ENVIRONMENTAL PARAMETERS
| Min Operating Temperature |
32 F |
| Max Operating Temperature |
122 |
| Humidity Range Operating |
10 – 95% (non-condensing) |
DIMENSIONS & WEIGHT
| Width |
6.5 in |
| Depth |
6.2 in |
| Height |
1.6 in |
| Weight |
12.34 oz |
CAPACITY
| Type |
concurrent stations, simultaneous VoIP clients |
| Value |
30, 512 |
Conclusion:
We hope our list of best dual-band outdoor wireless access points helps you to choose the right product for yourself according to your budget and requirements. You might have noticed that all of them offer the identical functionality. What makes these products different are the additional features and supported technologies they offer.
If you have any doubts, questions or suggestions, feel free to contact us directly or use the comment section below. Make sure you subscribe us to get the latest tech updates, we are always updating with the latest tech news. Thank you!
