List of Intel 14th-gen Core non-K Desktop CPUs

List of Intel 14th-gen Core non-K Desktop CPUs

The tech world is abuzz with whispers of Intel’s upcoming 14th Gen Core processors, codenamed Raptor Lake Refresh. While the “K” series promises overclocking enthusiasts a playground, the non-K variants remain shrouded in some mystery. But fear not, tech detectives! Based on leaks and rumors, we’ve pieced together a glimpse of what these non-K CPUs might offer.

Note: If you buy something from our links, we might earn a commission. See our disclosure statement.

Performance Packed and Power Efficient:

The headline screams efficiency. These processors are rumored to retain the 65W TDP of their predecessors, ensuring they won’t melt your motherboard while delivering solid performance. Core counts range from 4 (i3-14100) to a whopping 24 (i9-14900), catering to various needs and budgets.

Table for Intel 14th-gen Core non-K Desktop CPUs:

FeatureCore i3-14100

Intel Core i9-14900

Check on Amazon

#paid

Core i5-14400

Intel Core i9-14900

Check on Amazon

Core i5-14500

Intel Core i9-14900

Check on Amazon

Core i5-14600

Intel Core i9-14900

Check on Amazon

Core i7-14700

Intel Core i9-14900

Check on Amazon

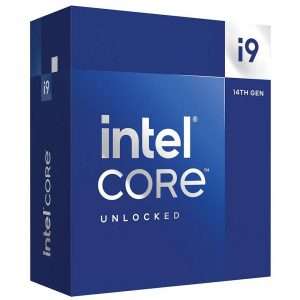

Core i9-14900

Intel Core i9-14900

Check on Amazon

Cores (P + E)4 (P)6 (P) + 4 (E)6 (P) + 8 (E)6 (P) + 8 (E)8 (P) + 12 (E)8 (P) + 16 (E)
Threads81620202832
Base Clock (P)4.6 GHz2.5 GHz2.6 GHz2.7 GHz2.1 GHz2.0 GHz
Turbo Boost Max (P)4.7 GHz4.7 GHz5.0 GHz5.2 GHz5.4 GHz5.8 GHz
Base Clock (E)N/A1.8 GHz1.8 GHz2.0 GHz1.5 GHz1.5 GHz
Turbo Boost Max (E)N/A3.6 GHz3.7 GHz3.8 GHz4.3 GHz4.4 GHz
L3 Cache12 MB20 MB24 MB24 MB30 MB36 MB
TDP65 W65 W65 W65 W65 W65 W
Max Turbo Power (PL2)N/AN/AN/AN/A219 W219 W
Integrated GraphicsUHD Graphics 730UHD Graphics 770UHD Graphics 770UHD Graphics 770UHD Graphics 770UHD Graphics 770
Memory SupportDDR4-3200, DDR5-5600DDR4-3200, DDR5-4800DDR4-3200, DDR5-4800DDR4-3200, DDR5-5600DDR4-3200, DDR5-5600DDR4-3200, DDR5-5600
Max Memory Channels222222
Max Memory Bandwidth89.6 GB/s76.8 GB/s76.8 GB/s89.6 GB/s89.6 GB/s89.6 GB/s
PCI Express Lanes202020202020

Hybrid Powerhouse:

The core architecture leans on a blend of high-performance P-cores and power-efficient E-cores. This dynamic duo promises smooth multitasking and efficient handling of demanding workloads. Expect core-intensive tasks like video editing and 3D rendering to see a boost, while everyday tasks like web browsing remain snappy.

Speed Demystified:

Clock speeds are rumored to see a modest bump compared to the 13th Gen. While some might yearn for more, remember, efficiency takes center stage here. The i9-14900 reportedly boasts a max turbo of 5.8 GHz, while even the i3-14100 reaches a respectable 4.7 GHz.

Future-Proof Connectivity:

These CPUs are rumored to support both DDR4 and DDR5 memory, giving you flexibility based on your budget and upgrade plans. PCIe 4.0 and 5.0 support ensures compatibility with the latest storage and graphics cards, keeping you future-proof for a while.

Integrated Graphics on Board:

All non-K models are expected to come with Intel UHD Graphics 770, offering basic graphics capabilities for casual gaming and everyday tasks. While not meant for hardcore gamers, it’s a welcome addition for those building budget-friendly PCs.

A Word of Caution:

Remember, this information is based on leaks and rumors. Intel hasn’t officially confirmed anything yet. Take it with a grain of salt and wait for the official announcement for accurate details and launch dates.

The Intel 14th-gen Core non-K desktop CPUs represent the locked versions of the Raptor Lake Refresh processors. The Raptor Lake Refresh processors are compatible with the Intel 600-series as well as 700-series chipset-based motherboards. They support both DDR4 and DDR5 RAM and come with 65W TDP.

14th-gen Core non-K desktop CPUs are Intel’s latest processors that provide more efficient cores and faster performance cores. They also support PCIe 4.0/5.01. Being locked, they can’t be overclocked. Moreover, their power consumption is lower than the unlocked K-series models.

ECSM_Official offered CPU-Z and Cinebench benchmark scores for the latest processors. It did so after a few days of disclosing the scores for the Core i5-14600 model. Moreover, Intel is likely to sell the new non-K chips at the price same as their 13th-gen counterparts.

According to the latest leaks, we are already aware of the 14th-gen Core CPU series. It offers a modest boost in clock speeds that improves the performance slightly. The price tags are similar which suggests that the latest CPUs will prove to be at least a suitable investment for customers who choose Intel processors for their new PCs.

Here’s the list of Intel 14th-gen Core non-K desktop CPUs:

  1. Core i3-14100:

Features:

  • The leaked benchmarks of core i3-14100 confirm that it has a maximum boost frequency of 4.7 GHz.
  • It is a quad-core/8 thread model that exclusively uses performance cores.
  • It is manufactured using the 10nm fabrication process and is designed for the desktop platform.
  • It has T and F variants with lower power consumption and zero integrated graphics, respectively.

Specifications:

Launch DateQ1 2024
Fab Process10 nm (Intel 7)
CPU Size45.0 x 37.5 mm
TDP60.0 W
A multi-chip module (MCM)1
SocketLGA1700
Micro-architectureRaptor Cove
CodenameRaptor Lake-R
Cores4
Threads8
Base Frequency4.7 GHz
Turbo Frequency4.7 GHz
L1 Cache (Instruction)128 KB
L1 Cache (Data)192 KB
L2 Cache5 MB
L3 Cache12 MB
Turbo Multiplier47.0
Data width64 bits
Scalability1 CPUs
BusDMI 4.0
Bus Frequency100 MHz
Bus Speed16 GT/s
Instruction SetMMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES, AVX, AVX2, BMI1, BMI2, F16C, FMA3, EM64T
FeaturesHyperThreading, NX bit, VT-x, VT-d, DL Boost
Memory TypeDDR5-5600DDR4-3200
Memory Bandwidth89.6 GB/s
Memory Channels2
Max Memory Size128 GB
ECC Memory SupportYes
Processor GraphicsUHD Graphics 730
Graphics Core Config24 Execution Units, 12 TMUs, 8 ROPs
PCI Express Revision5.0/4.0
PCI Express Lanes20
PCI Express Config1×16 (PCIe 5) + 1×4 (PCIe 4) or 2×8 (PCIe 5) + 1×4 (PCIe 4)
  1. Core i5-14400:

Features:

  • Core i5-14400 offers six P-Cores and four E-Cores to work for a 10-core/16-thread configuration. The P-Cores have a maximum boost frequency of 4.7 GHz.
  • In the AIDA64’s stress test benchmarks, the Core i5-14400 could attain 3.5 GHz boost frequency with E-Cores and 4.1 GHz with P-Cores. During benchmarks, the power consumption of the Core i5-14400 reached up to 84.75W.
  • The Core i3-14100 has attained a maximum all-core frequency of 4.5 GHz @ 68.75 W. But the Core i5-14400 attained 4.10 GHz (E-Core at 3.5 GHz) with 84.75 W TDP. The noticed 200 MHz boost in speed provides marginal performance improvements compared to the 13th-generation models.
  • It has a 2.6 GHz P-Core base frequency that is a slight improvement from the existing lineup’s 2.5 GHz. The boost clock speed is approx. 200 MHz more than the existing lineup.
  • It is dependent on the Raptor Lake Refresh architecture that blends high-performance P-cores as well as efficient E-cores in a hybrid design.
  • It supports a new instruction set known as x86-64. It improves the performance and security of the processor.

Specifications:

Released dateJanuary 1, 2024
TypeDesktop
Instruction setx86-64
CodenameRaptor Lake Refresh
Model numberi5-14400
Integrated GPUUHD Graphics 770
P-Cores6
P-Threads12
Base Frequency (P)2.5 GHz
Turbo Boost Frequency (P)4.7 GHz
E-Cores4
E-Threads4
Base Frequency (E)1.8 GHz
Turbo Boost Frequency (E)3.6 GHz
Total Cores10
Total Threads16
Bus Frequency100 MHz
Multiplier25x
L1 Cache80K (per core)
L2 Cache2MB (per core)
L3 Cache20MB (shared)
Fabrication process10 nm
TDP (PL1)65 W
Max. Boost TDP (PL2)154 W
SocketLGA-1700
Peak temperature100°C
Integrated GraphicsIntel UHD Graphics 770
GPU Base Clock300 MHz
GPU Boost Clock1550 MHz
Shading Units256
TMUs16
ROPs8
Execution Units32
TGP15 W
Memory typesDDR5-4800, DDR4-3200
Memory Size128 GB
Max. Memory Channels2
Max. Memory Bandwidth76.8 GB/s
PCI Express Version5.0
PCI Express Lanes20
  1. Core i5-14500:

Features:

  • This Intel processor is built on the 10nm fabrication process.
  • It is designed for the desktop platform.
  • Its processor utilizes the LGA-1700 socket and offers compatibility with the Intel 600 and 700 series chipsets. Intel is manufacturing the Core i5-14500 on a 10 nm production node, but the transistor count is unknown. Moreover, the multiplier is locked on Core i5-14500, and thus it limits its overclocking potential.
  • Hardware virtualization is supported and it significantly enhances virtual machine performance.
  • IOMMU virtualization (PCI passthrough) is supported. Hence, guest virtual machines may directly utilize host hardware.
  • Those programs that use Advanced Vector Extensions (AVX) can operate on this processor. Thus, they will boost performance for calculation-intensive applications. Apart from AVX, Intel is implementing the newer AVX2 standard, as well, but not AVX-512.
Released dateJanuary 1, 2024
TypeDesktop
Instruction setx86-64
CodenameRaptor Lake Refresh
Model numberi5-14500
Integrated GPUUHD Graphics 770
P-Cores6
P-Threads12
Base Frequency (P)2.6 GHz
Turbo Boost Frequency (P)5 GHz
E-Cores8
E-Threads8
Base Frequency (E)1.8 GHz
Turbo Boost Frequency (E)3.7 GHz
Total Cores14
Total Threads20
Bus Frequency100 MHz
Multiplier26x
L1 Cache80K (per core)
L2 Cache2MB (per core)
L3 Cache24MB (shared)
Fabrication process10 nm
TDP (PL1)65 W
Max. Boost TDP (PL2)154 W
SocketLGA-1700
Peak temperature100°C
Integrated GraphicsIntel UHD Graphics 770
GPU Base Clock300 MHz
GPU Boost Clock1550 MHz
Shading Units256
TMUs16
ROPs8
Execution Units32
TGP15 W
Memory typesDDR5-4800, DDR4-3200
Memory Size128 GB
Max. Memory Channels2
Max. Memory Bandwidth76.8 GB/s
ECC SupportYes
PCI Express Version5.0
PCI Express Lanes20
  1. Core i5-14600:

Features:

  • The desktop processor comes with 14 cores and 20 threads. It belongs to the 14th generation of Intel Core processors, called Raptor Lake.
  • It supports different technologies like Intel Gaussian & Neural Accelerator 3.0, Intel Deep Learning Boost, Intel Thread Director, Intel Turbo Boost 2.0, Intel AES New Instructions, Intel Hyper-Threading, Intel Virtualization Technology, and Intel Control-Flow Enforcement Technology.

Specifications:

Released dateJanuary 1, 2024
TypeDesktop
Instruction setx86-64
CodenameRaptor Lake Refresh
Model numberi5-14600
Integrated GPUUHD Graphics 770
P-Cores6
P-Threads12
Base Frequency (P)2.7 GHz
Turbo Boost Frequency (P)5.2 GHz
E-Cores8
E-Threads8
Base Frequency (E)2.0 GHz
Turbo Boost Frequency (E)3.8 GHz
Total Cores14
Total Threads20
Bus Frequency100 MHz
Multiplier27x
L1 Cache80K (per core)
L2 Cache2MB (per core)
L3 Cache24MB (shared)
Fabrication process10 nm
TDP (PL1)65 W
Max. Boost TDP (PL2)154 W
SocketLGA-1700
Peak temperature100°C
Integrated GraphicsIntel UHD Graphics 770
GPU Base Clock300 MHz
GPU Boost Clock1550 MHz
Shading Units256
TMUs16
ROPs8
Execution Units32
TGP15 W
Memory typesDDR5-5600, DDR4-3200
Memory Size128 GB
Max. Memory Channels2
Max. Memory Bandwidth89.6 GB/s
ECC SupportYes
PCI Express Version5.0
PCI Express Lanes20
  1. Core i7-14700:

Features:

  • This 14th-generation desktop processor is equipped with 20 cores and 28 threads. Although its base frequency is 2.1 GHz, it can work up to 5.4 GHz at Performance-core Max Turbo Frequency as well as up to 4.3 GHz through Efficient-core Max Turbo Frequency.
  • Unlike the Core i7-14700K2, it doesn’t have an integrated graphics card. The TDP is 65 W but the maximum turbo power is 219 W.
  • It also comes with the Intel® Gaussian & Neural Accelerator 3.0, Intel® Deep Learning Boost (Intel® DL Boost) on CPU, Intel® Thread Director, Intel® Turbo Boost Max Technology 3.0, Intel® 64, Intel® Hyper-Threading Technology, Intel® OS Guard, Intel® AES New Instructions, and Intel® Volume Management Device (VMD).

Specifications:

Released dateJanuary 1, 2024
TypeDesktop
instruction setx86-64
CodenameRaptor Lake Refresh
Model numberi7-14700
Integrated GPUUHD Graphics 770
P-Cores8
P-Threads16
Base Frequency (P)2.1 GHz
Turbo Boost Frequency (P)5.4 GHz
E-Cores12
E-Threads12
Base Frequency (E)1.5 GHz
Turbo Boost Frequency (E)4.3 GHz
Total Cores20
Total Threads28
Bus Frequency100 MHz
Multiplier21x
L1 Cache80K (per core)
L2 Cache2MB (per core)
L3 Cache30MB (shared)
Fabrication process10 nm
TDP (PL1)65 W
Max. Boost TDP (PL2)219 W
SocketLGA-1700
Peak temperature100°C
Integrated GraphicsIntel UHD Graphics 770
GPU Base Clock300 MHz
GPU Boost Clock1600 MHz
Shading Units256
TMUs16
ROPs8
Execution Units32
TGP15 W
Memory typesDDR5-5600, DDR4-3200
Memory Size128 GB
Max. Memory Channels2
Max. Memory Bandwidth89.6 GB/s
ECC SupportYes
PCI Express Version5.0
PCI Express Lanes20



  1. Core i9-14900:

Specifications:

Released dateJanuary 1, 2024
TypeDesktop
Instruction setx86-64
CodenameRaptor Lake Refresh
Model numberi9-14900
Integrated GPUUHD Graphics 770
P-Cores8
P-Threads16
Base Frequency (P)2.0 GHz
Turbo Boost Frequency (P)5.8 GHz
E-Cores16
E-Threads16
Base Frequency (E)1.5 GHz
Turbo Boost Frequency (E)4.4 GHz
Total Cores24
Total Threads32
Bus Frequency100 MHz
Multiplier20x
L1 Cache80K (per core)
L2 Cache2MB (per core)
L3 Cache36MB (shared)
Fabrication process10 nm
TDP (PL1)65 W
Max. Boost TDP (PL2)219 W
SocketLGA-1700
Peak temperature100°C
Integrated GraphicsIntel UHD Graphics 770
GPU Base Clock300 MHz
GPU Boost Clock1650 MHz
Shading Units256
TMUs16
ROPs8
Execution Units32
TGP15 W
Memory typesDDR5-5600, DDR4-3200
Memory Size128 GB
Max. Memory Channels2
Max. Memory Bandwidth89.6 GB/s
ECC SupportYes
PCI Express Version5.0
PCI Express Lanes20

So, who are these CPUs for?

If you’re a content creator, casual gamer, or everyday user looking for a balance of performance and efficiency, these non-K CPUs could be worth considering. They could also be a great option for building budget-friendly PCs without sacrificing core count or future-proofing capabilities.

Stay tuned, tech enthusiasts! As more information surfaces, we’ll delve deeper into the world of Intel’s 14th Gen non-K desktop CPUs. In the meantime, share your thoughts in the comments below. Are you excited about these rumored processors? What features are most important to you?
