In this article, we have a list of Mesh shader-supported GPUs from AMD and Nvidia. Mesh shaders are an advanced feature in modern graphics processing units (GPUs) that provide a more flexible and efficient approach to geometry processing. This technology, which is part of the DirectX 12 Ultimate and Vulkan APIs, allows for more complex and detailed graphics in real-time rendering, which is especially beneficial in gaming and professional graphics applications.

Note: If you buy something from our links, we might earn a commission. See our disclosure statement.

Here’s a brief overview of the types of GPUs that typically support mesh shaders:

  1. NVIDIA GPUs: NVIDIA has incorporated mesh shader capabilities starting with the Turing architecture (RTX 20 series) and continuing with the Ampere (RTX 30 series) and any subsequent architectures.
  2. AMD GPUs: AMD introduced mesh shader support with its RDNA 2 architecture, which is found in the RX 6000 series GPUs.
  3. Intel GPUs: Certain newer Intel integrated GPUs, particularly those accompanying the latest generation of Intel Core processors, also offer mesh shader support, though this can vary based on the specific model and capabilities.

Presently, mesh shaders are only supported by NVIDIA Turing GPUs (i.e., GeForce RTX 20 Series, GeForce GTX 16 Series). AMD RDNA2 GPUs will also support mesh shaders. To check the support of mesh shaders, you can look at the existence of the GL_NV_mesh_shader extension in either OpenGL or the VK_NV_mesh_shader device extension in Vulkan. The mesh shading pipeline substitutes the standard VTG pipeline (VTG stands for Vertex / Tessellation / Geometry).

List of Mesh shader-supported GPUs from AMD and Nvidia:

ImageProduct NameBuy Now
NVIDIA GEFORCE RTX 2080 Ti Founders EditionCheck on Amazon

Check on Newegg

maxsun GeForce RTX 2060 Super iCraftCheck on Amazon

Check on Newegg

EVGA GeForce RTX 2060 SC GAMINGCheck on Amazon

Check on Newegg

51RISC GeForce GTX 1660 Super Graphics CardCheck on Amazon

Check on Newegg

ASUS Phoenix NVIDIA GeForce GTX 1650 OC

ASUS Phoenix NVIDIA GeForce GTX 1650 OCCheck on Amazon

ZOTAC Gaming GeForce GTX 1630Check on Amazon

Check on Newegg

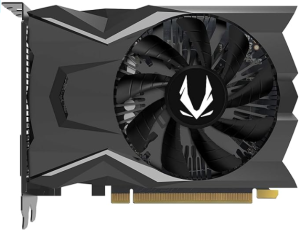

ZOTAC Gaming GeForce GTX 1630:

Check on AmazonCheck on Newegg

NVIDIA Turing Architecture is implemented in this GeForce GTX 1630. Due to its super compact design (5.9-inch), it fits in 99% of systems. It ensures a fast and robust gaming experience. It supports mesh shaders for efficient performance.

Specifications:

GPUGeForce® GTX 1630
CUDA cores512
Video Memory4 GB GDDR6
Memory Bus64-bit
Engine Clock Boost1785 MHz
Memory Clock12 Gbps
PCI Express3.0
Display OutputsDisplayPort 1.4a (up to 7680×4320@60Hz), HDMI 2.0b (up to 4096×2160@60Hz), Dual Link DVI-D (up to 2560×1600 @ 60Hz)
HDCP Support2.2
Multi-Display CapabilityTriple Display
Power Consumption75W
Recommended Power Supply300W
OpenGL4.6
DirectX12 API feature level 12_1
CoolingSingle Fan
Slot SizeDual Slot
Supported OSWindows 11 / 10 (64-bit, April 2018 update or later) / 7 (64-bit)
Card Length5.94in x 4.38in x 1.53in
AccessoriesUser Manual
Nvidia featuresNVIDIA G-SYNC, NVIDIA Ansel, NVIDIA GPU Boost, NVIDIA Highlights
4K ReadyYes
FireStorm UtilitySupported
Software compatibilityMicrosoft DirectX 12 API, OpenGL 4.6, Vulkan API, Game Ready Drivers
OS supportWindows 11 / 10 (64-bit, April 2018 update or later) / 7 (64-bit)
Dimensions and weight‎6.3 x 4.33 x 0.79 inches; 1.44 pounds

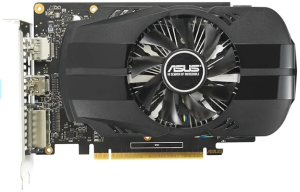

ASUS Phoenix NVIDIA GeForce GTX 1650 OC:

ASUS Phoenix NVIDIA GeForce GTX 1650 OC

Check on Amazon

This GeForce GTX 1650 GPU is implemented with the award-winning NVIDIA Turing architecture to provide powerful graphics performance. It contains ultra-fast GDDR6 with 50% more memory bandwidth to support high-speed gaming. It is also suitable for photo editing and post-processing tasks.

GeForce Experience allows you to capture and share screenshots, videos, and livestreams with others. You can keep GeForce drivers updated and easily optimize in-game settings.

OC edition boosts clock speed of 1635 MHz in OC mode and 1605 MHz in default mode.

IP5X dust resistance provides protection against particle ingress for high durability. The included dual ball fan bearings can last up to twice as much as sleeve bearing designs.

Auto-Extreme Technology uses automation to increase reliability. The stainless steel bracket is more durable and more resistant to corrosion.

GPU Tweak III offers intuitive thermal controls, system monitoring, and performance tweaking. With dual ball-bearing fans and IP5X dust resistance, this GPU provides the best gaming experience.

The installation was completed in minutes.

It contains a 6-pin connector on it. Hence, if you wish to install it into an OptiPlex then you have to purchase a SATA to 6-pin adapter.

Specifications:

Graphic EngineNVIDIA® GeForce GTX 1650
Bus StandardPCI Express 3.0
OpenGLOpenGL®4.6
Video Memory4 GB GDDR5
Engine ClockOC Mode – GPU Boost Clock: 1710 MHz, GPU Base Clock: 1485 MHz; Gaming Mode (Default) – GPU Boost Clock: 1680 MHz, GPU Base Clock: 1485 MHz
CUDA Core896
Memory Speed8002 MHz
Memory Interface128-bit
Digital Max Resolution7680 x 4320
Interface1x Native DVI-D, 1x Native HDMI 2.0b, 1x Native DisplayPort 1.4, HDCP 2.2,
Maximum Display Support3
SoftwareASUS GPU Tweak II & Drivers (need to download all software from the support site)
Recommended PSU300W
Slot2 Slots
Dimensions and weight‎7.8 x 4.8 x 1.5 inches; 11.2 ounces

51RISC GeForce GTX 1660 Super Graphics Card:

Check on AmazonCheck on Newegg

This GeForce GTX 1660 graphics card was developed using the 12 nm process. It is based on the TU116 graphics processor, and it supports DirectX 12. It is a suitable choice for 1080p gamers on a limited hardware budget.

You can use this Mesh shader support GPU for photo processing with On1 Photo Raw, Photoshop, and DxO Photolab. You can play any game without compromising the graphics. It can run most games on medium settings, up to 90 to 130 fps. The price is worthwhile for the features.

It offers enhanced power efficiency compared to the previous generation. So, it guarantees a cooler, faster, and quieter gaming experience. No need to spend much on upgrading your PC. It only requires a PCIe 3.0 motherboard and less than 500W PSU.

Since it is a dual-slot card, it has a maximum power draw rate of 125 W.

The blade dual fans offer improved airflow and quiet operation.

Specifications:

Release DateOct 29th, 2019
ArchitectureTuring
FoundryTSMC
Process Size12 nm
Transistors6,600 million
Density23.2M / mm²
Die Size284 mm²
Chip PackageBGA-2228
GenerationGeForce 16
PredecessorGeForce 10
SuccessorGeForce 20
Bus InterfacePCIe 3.0 x16
Base Clock1530 MHz
Boost Clock1785 MHz
Memory Clock1750 MHz (14 Gbps effective)
Memory Size6 GB
Memory TypeGDDR6
Memory Bus192 bit
Bandwidth336.0 GB/s
Shading Units1408
TMUs88
ROPs48
SM Count22
L1 Cache64 KB (per SM)
L2 Cache1536 KB
Slot WidthDual-slot
TDP125 W
Suggested PSU300 W
Outputs1x DVI, 1x HDMI 2.0, 1x DisplayPort 1.4a
Power Connectors1x 8-pin
Pixel Rate85.68 GPixel/s
Texture Rate157.1 GTexel/s
DirectX12 (12_1)
OpenGL4.6
OpenCL3.0
Vulkan1.3
CUDA7.5
Shader Model6.7
Dimensions and weight12.83 x 7.4 x 3.62 inches; 2.05 pounds
Included accessoriesUser manual, Professional after-sale service, 2-year limited manufacture warranty

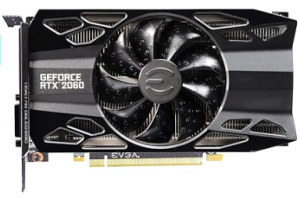

EVGA GeForce RTX 2060 SC GAMING:

Check on AmazonCheck on Newegg

This RTX 2060 GPU supports Mesh Shader and is implemented with the latest NVIDIA Turing architecture. This architecture provides excellent power efficiency, speed, a new level of gaming practicality, and immersion. You get the finest gaming experience with cutting-edge graphics performance, advanced overclocking features, and ice-cold cooling. The advanced EVGA Precision x1 software supports many new features.

With the latest NVIDIA RTX platform and NVIDIA Turing GPU architecture, the GPU combines programmable shading, artificial intelligence, and real-time Ray tracing. So, the GPU offers a new gaming way and ensures the ultimate PC gaming experience. The combination of the mentioned architecture and platform provides it six times the performance of previous-generation graphics cards. Real-time Ray tracing enables advanced, hyper-realistic graphics in games.

To provide optimal cooling solutions, EVGA cooling is implemented to improve the heatsink, baseplate, and fans.

It is designed for EVGA Precision x1 – EVGA’s latest tuning utility monitors. So, it provides you the power to overclock like a Pro.

With the purchase, you get EVGA Vehicle Skin and Get Grip Game.

Specifications:

Graphics Ram Size6 GB
GPU Clock Speed1710 MHz
Graphics RAM TypeGDDR6
Memory Clock Speed14000 MHz (Effective)
Boost clock speed1680 MHz
Hardware InterfacePCI Express x8
BusPCIe 3.0
Memory Bus Width192 bits
Memory bandwidth336 GB/s
CUDA cores1920
Video Output InterfaceDVI, HDMI
Other featuresNvidia GeForce Experience, Nvidia Ansel, Nvidia Highlights, Nvidia G-Sync Compatible, Game Ready Drivers, Microsoft DirectX 12 API, OpenGL 4/5, Vulkan API, DisplayPort 1.4, HDMI 2.0b, Dual-Link DVI, HDCP 2.2, Nvidia GPU Boost
Dimensions and weight3.15 x 6.5 x 11.25 inches; 2 pounds
Included componentUser manual

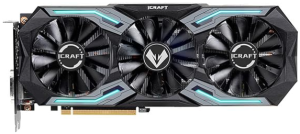

Maxsun GeForce RTX 2060 Super iCraft:

Check on AmazonCheck on Newegg

RTX 2060 Super iCraft is based on the cutting-edge Turing architecture and RTX platform. The mentioned architecture and platform combines artificial intelligence, real-time ray tracing, and programmable shading. It utilizes a new generation of 12 nm graphics chips created to attain higher realism.

The real-time ray tracing offers lifelike reflections, lighting, and shadows. These outputs are better than traditional rendering methods.

The design shows a pre-installed iCraft Metal backplate. The high-end fin technology radiator matches with 5 heat pipes to boost heat transmission efficiency, allow the graphics card to load at a low temperature, and boost frequency.

Specifications:

GPU ArchitectureTuring
GPU Core CodeTU106-410
GPU Core Processes12nm
CUAD2176
GPU Memory Size8GB GDDR6
GPU Core Clock1470MHz
GPU Core Boost Clock1650MHz
GPU Memory Clock14000MHz
GPU Memory Bandwidth448GB/s
GPU Memory Interface Width256bit
Bus Interface TypePCI Express X16 3.0
Maximum Digital Resolution7680×4320 Pixel DisplayPort
Standard Display ConnectorsHDMI+DP+DVI
Supplementary Power Connectors8Pin
Graphics Card Power (TDP)175W
Recommended System Power450W or higher
3D APIMicrosoft DirectX 12 Ultimate Vulkan RT API, Shader Model 5.0, OpenGL 4.6 / 4.5
System requirementsWindows 11, Windows 10, Windows 8 & 8.1, Windows 7, Windows Vista, Linux, FreeBSD x86
Other featuresTensor Cores, Ray Tracing Cores, NVIDIA Adaptive Shading, NVIDIA DLSS 2.0, NVIDIA GeForce Experience, NVIDIA Highlights NVIDIA G-SYNC Compatible, NVIDIA Ansel, NVIDIA GPU Boost, Game Ready Drivers, HDMI 2.0b, DisplayPort 1.4, HDCP 2.2, NVIDIA Encoder (NVENC) (Turing), VR Ready
Dimensions and weight12 x 4.92 x 1.61 inches; 3.74 pounds

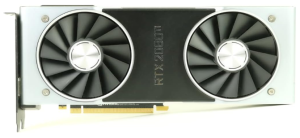

NVIDIA GEFORCE RTX 2080 Ti Founders Edition:

Check on AmazonCheck on Newegg

This RTX 2080 Ti GPU is constructed on TSMC’s 12nm manufacturing process. It denotes the optimization of the earlier generation’s 16nm and hence provides efficient performance. The ability to reach 616 GBps with a similarly-sized memory bus denotes the speed benefit of GDDR6 RAM. RTX 2080 Ti and RTX 2080 are the first consumer graphics cards implemented with it.

Real-time ray tracing is implemented. This Turing GPU comes with dedicated RT cores that are improved by AI-boosting tensor cores. They can help detect missing information or potential errors during the ray-tracing process.

The advanced Turing GPU lets the gaming graphics appear splendidly lifelike, like movie CGI. The dedicated RT cores are a significant part of it.

Various connection technologies like ‘VirtualLink’ is implemented. The latest USB-C alternate-mode standard supports all data, audio, and video connections required to drive a virtual reality headset. A group of PC heavy-hitters, including Valve, Oculus, AMD, Microsoft, and Nvidia, supports it.

Connection technologies like DisplayPort 1.4 and HDMI 2.0b are implemented. These technologies power the G-Sync HDR monitors.

Specifications:

Release dateSeptember 20, 2018
CUDA cores4,352
Clock speedBase: 1350 MHz, Boost: 1545 MHz, 1635MHz boost (OC Founder’s Edition)
Memory capacity11 GB GDDR6
Memory path352 bits
Memory bandwidth616 GBps
PortsVirtualLink/USB-C, DisplayPort 1.4, HDMI 2.0b
Power2 x 8-pin, 250W TDP stock, 265W TDP OC Founders Edition
Fabrication ProcessTSMC 12nm
Die Size754 mm²
Base Clock1350 MHz
Boost Clock1545 MHz
Texture Units272
ROPs88
Ray Tracing Cores68
Tensor Cores544
L2 Cache5.5 MB
Memory Clock1750 MHz
Memory Clock Effective14 Gbps
Memory Interface Width352-bit
Memory Bandwidth616 GB/s
TechnologiesDirectX® Version 12
G-Sync/FreeSyncSupported
OpenCL2.0
OpenGL4.6
Shader Model6.5
Vulkan1.3
SLI/Crossfire ReadyYes
VR ReadyYes
Other TechnologiesNvidia GPU boost, NVIDIA Encoder (NVENC) (Turing), Designed for USB Type-C and VirtualLink, DisplayPort 1.4, HDMI 2.0b, HDCP 2.2, Vulkan API, NVIDIA Highlights, Game Ready Drivers, NVIDIA GeForce Experience, NVIDIA Ansel, Real-Time Ray Tracing
Maximum resolution7680×4320
Max HDMI Resolution3840×2160 @ 60 Hz
Max DP Resolution7680×4320 @ 120 Hz
Display Port1.4a x3
HDMI2.0b x1
USB-CUSB-C VirtualLink x1
InterfacePCIe 3.0 x16
Power Connectors2x 8-pin
PSU Recommendation650W
Graphics Card Power260W
Slot Width2 Slots
Dimensions and weight10.5 x 1.75 x 4.55 inches; 12 ounces

Conclusion

In conclusion, mesh shaders represent a significant advancement in GPU technology, enabling more sophisticated and efficient processing of complex geometries in real-time graphics.

Whether you’re a gamer, a professional in graphics design, or simply interested in the latest tech, understanding and utilizing GPUs with mesh shader capabilities can significantly enhance your visual experience and performance.
