By IG Share Share DDR5 represents the biggest leap in memory technology in years, but unlocking its full potential requires a new approach. Gone are the days of simply raising frequency; a stable DDR5 overclock demands a methodical understanding of new architectures, platform-specific strategies for Intel and AMD, and a rigorous validation process. This comprehensive guide will walk you through every step, from identifying your memory ICs and mastering the voltage triad to fine-tuning advanced timings and troubleshooting common issues, ensuring you achieve a verifiably stable and high-performance result. The Ultimate Guide to Stable DDR5 Overclocking | Faceofit.com Faceofit.com Workflow Concepts Voltages Timings Platforms Stability Diagnosis Troubleshooting Conclusion Subscribe A Methodical Approach to Stable DDR5 Memory Overclocking Unlock the true potential of your system with our deep dive into DDR5 tuning, from architectural fundamentals to platform-specific strategies. Note: If you buy something from our links, we might earn a commission. See our disclosure statement. The Overclocking Workflow at a Glance Before diving into the details, this flowchart provides a high-level overview of the methodical tuning process. Follow these steps to systematically find your system's limits and achieve a stable overclock. Start: Research ICs & Cooling BIOS Setup: Load Defaults, Enable XMP/EXPO Find Max Frequency (Increase & Quick Test) Tune Primary Timings (tCL, tRCD, tRP) Tune Secondary & Tertiary Timings Fine-Tune Voltages (Minimize for Stability) Full Stability Test? (TM5, y-cruncher, Karhu) Yes No Stable Overclock Achieved! Section 1: Foundational Concepts The jump to DDR5 is the biggest architectural shift in memory tech in years. To get a stable overclock, you need to understand the new rules. This section covers the core ideas you must know before you touch a single BIOS setting. Architectural Shifts from DDR4 DDR5 isn't just faster DDR4; it's a redesign. Key changes impact overclocking: dual 32-bit sub-channels, on-DIMM power management (PMIC), and on-die ECC. On-DIMM PMIC: Voltage regulation is now on the DIMM itself. This allows for cleaner power but can be a limiter. Some early or budget PMICs are voltage-locked (often to 1.435V), creating a hard ceiling for overclocking regardless of the memory chips' potential. On-Die ECC (ODECC): This is an internal feature to correct single-bit errors inside the DRAM chip, improving manufacturing yields. It is not the same as system-level ECC and will not protect against overclocking-induced instability between the CPU and RAM. Infographic: Memory Channel Architecture DDR4 DIMM 1 x 64-bit Channel A single, wider path for data. DDR5 DIMM 32-bit 32-bit Two independent, narrower channels for more parallelism and efficiency. Identifying Your DDR5 ICs The overclocking potential of your RAM is decided by the memory chips (ICs) on the PCB. Identifying them is your first step. The main players are SK Hynix, Samsung, and Micron, with Hynix A-die being the current king for enthusiasts. Tools like CPU-Z and HWiNFO64 are essential, while specialized software like Thaiphoon Burner can read the module's SPD data for precise die revision info. The Critical Role of Thermal Management DDR5 is extremely sensitive to heat. Pushing voltage and tight timings generates significant heat, and stability can plummet once DIMMs go above 50-55°C. Active cooling is not optional for serious overclocking. Don't forget hidden heat sources: your GPU's exhaust can directly raise DIMM temperatures, turning a stable memory-only test into a failing gaming session. Interactive Chart: Thermal Impact on Stability This chart illustrates how the maximum stable Refresh Interval (tREFI), a key performance timing, degrades as memory temperature rises. Section 2: The Voltage Triad Stable overclocking requires balancing power to three areas: the DRAM modules, the CPU's Integrated Memory Controller (IMC), and the System Agent (SA) or SoC. More voltage isn't always better; too much can hurt stability. Interactive Chart: CPU SA Voltage Rollover Demonstrates how increasing System Agent (SA) voltage helps up to a point, after which it can introduce noise and reduce stability. The goal is to find the minimum stable voltage. Safe Voltage Baselines for 24/7 Operation XMP/EXPO profiles often use more voltage than needed. Manual tuning can reduce heat and power. Here are some safe starting points for daily use, synthesized from expert guides. Voltage Rail Platform Common Names Enthusiast 24/7 Range General Max Safe (Daily) DRAM VDDBothDRAM Voltage1.35V - 1.45V~1.55V DRAM VDDQBothDRAM VDDQ Voltage1.35V - 1.45V~1.55V CPU SAIntelVCCSA, System Agent1.20V - 1.30V1.35V CPU VDDQ TXIntelCPU VDDQ, IVR TX1.30V - 1.40V1.45V IMC VoltageIntelCPU VDD2, MC Voltage1.35V - 1.45V1.50V CPU VSOCAMDSOC Voltage1.25V - 1.28V1.30V (Hard Limit) VDDIO/MCAMDCPU VDDIO1.35V - 1.40V1.40V Section 3: Deconstructing Memory Timings Frequency sets the speed limit, but timings dictate the efficiency. Tightening sub-timings (secondary and tertiary) is where you'll find the biggest performance gains beyond XMP. Primary Timings: The Foundation These four values (tCL, tRCD, tRP, tRAS) are the most well-known. While tCL (CAS Latency) gets the most attention, they all work together. A good rule of thumb for tRAS is to set it to approximately tCL + tRCD to ensure a row stays open long enough for data access before precharging. Unlocking Performance with Secondary Timings These have a profound impact on performance. tRFC and tREFI are the most important; a low tRFC (faster refresh) and high tREFI (less frequent refreshes) dramatically boost performance but are highly temperature-sensitive. The "Activate" timings (tRRD_L, tRRD_S, tFAW) govern how quickly the memory controller can switch between data locations. A key optimization is setting tFAW based on the formula $tFAW ge 4 times tRRD_S$. Timing IC Type Safe Starting Value Aggressive Target tRFCHynix A/M-Die480360 - 400 tREFIHynix A/M-Die3276865535 tRRD_LAll128 tRRD_SAll84 - 8 tFAWAll4816 - 32 tWRAll6048 An Introduction to Tertiary Timings This is the deepest level of tuning. Tertiary, or "turnaround" timings, control the delays when switching between operations (read-to-write) and physical locations on the DIMMs. They often have suffixes like `_sg` (Same Group), `_dg` (Different Group), and `_dd` (Different DIMM). While motherboard auto-training is usually sufficient, manual tuning of these can provide small, measurable gains for competitive benchmarkers. Section 4: Platform-Specific Tuning Filter by Platform: Show All Intel AMD Intel and AMD handle memory differently. Intel uses "gears" to hit high frequencies, while AMD focuses on a 1:1 synchronous link for low latency. You need to use the right strategy for your platform. Part A: Intel Z690/Z790 Platforms Intel's strategy is to use Gear 2 (a 1:2 ratio for the IMC) to enable very high DRAM frequencies (7200 MT/s+). While Gear 1 (1:1) offers the lowest latency, it's not stable at DDR5 speeds. Gear 4 is for extreme competitive benchmarking only and is not useful for daily performance. Therefore, the goal is always to find the highest stable frequency in Gear 2 and then tighten timings. Establish Baseline: Load XMP. Find Max Frequency: Increase frequency in steps until unstable. Tune Primary Timings: Lower tCL, tRCD, tRP. Optimize Sub-timings: Tighten tRFC, tREFI, etc. Fine-tune Voltages: Lower SA, IMC, and VDDQ TX to the minimum stable values. Part B: AMD AM5 Platforms For AMD, the goal is to find the highest memory frequency that can run with a 1:1 ratio between the memory clock (MCLK) and memory controller clock (UCLK). Going beyond this "sweet spot" introduces a massive latency penalty. The Infinity Fabric clock (FCLK) should also be tuned as high as possible (e.g., 2000-2200 MHz) as it also directly impacts system latency. Establish Baseline: Load EXPO, then force UCLK=MCLK mode. Find Max Sync Frequency: Increase frequency until the 1:1 ratio is unstable. Tune Primary Timings: Lower tCL, tRCD, tRP. Optimize Sub-timings: Use community guides for aggressive but stable values. Fine-tune Voltages: Lower VSOC (never above 1.30V) and VDDIO. Infographic: AMD AM5 Synchronicity Optimal: 1:1 Ratio UCLK = MCLK Lowest latency, best performance. The "sweet spot" is 6000-6400 MT/s. Sub-optimal: 1:2 Ratio UCLK = MCLK / 2 High latency penalty negates frequency gains. Avoid this. Section 5: The Gauntlet for Stability A truly stable overclock doesn't crash, ever. This requires more than one test. You need a suite of tools to stress the DRAM, the IMC, and the system's thermal limits. Essential Monitoring and Diagnostic Software Before stress testing, you need to see what's happening. HWiNFO64 is non-negotiable for monitoring DIMM temperatures, voltages, and clocks in real-time. AIDA64's Memory Benchmark is excellent for quick performance checks to see if your changes are actually improving bandwidth and latency. Pro Tip: True stability is proven under a combined load. Run a GPU stress test like FurMark alongside your RAM test to simulate the worst-case thermal scenario of a heavy gaming session. Tool Name Primary Purpose Pass Criteria TestMem5 (TM5)Quickly finds timing/voltage errors10+ cycles with a custom profile (anta777 Absolut) y-cruncherStresses the CPU's IMC2+ hours, focusing on the VT3 component Karhu RAM TestLong-duration, heat-soak error detection3-6 hours error-free for daily stability The Final Boss: The Cold Boot Test Some settings may be stable after a warm reboot but can fail during the motherboard's memory training sequence on a cold power-on. This reveals "training stability" issues. Periodically perform a full shutdown and cold boot to ensure your system can reliably initialize with the overclocked settings. Interactive Troubleshooting Decision Tree Stuck? Answer the questions below to quickly diagnose your overclocking issue and get targeted advice. Section 6: Troubleshooting & Advanced Tips Even with a methodical approach, you'll run into walls. Here’s how to diagnose common failure scenarios and understand advanced settings that can make or break your overclock. Diagnosing Common Failure Scenarios Failure to POST / Boot Loop Cause: Frequency too high for the IMC, timings too tight, or insufficient SA/VSOC/DRAM voltage. Solution: Clear CMOS to reset BIOS. Re-apply last known stable settings, then loosen the one parameter you just changed. OS Instability / BSODs Cause: Marginal voltage instability or thermal issues. A `MEMORY_MANAGEMENT` BSOD is a dead giveaway. Solution: Slightly increase DRAM VDD or SA/VSOC. Check DIMM temps in HWiNFO64; if they exceed 55°C, improve airflow. Interpreting Motherboard Q-Codes That little two-digit display on your motherboard is your best friend when the screen stays black. These codes can help you pinpoint memory training issues. Q-CodePlatformCommon Meaning 15, 55, C5BothMemory initialization/detection failure. The board is struggling to train the RAM. 0dAMDMemory training or compatibility issue. Common with unstable EXPO profiles. 30, 31IntelEarly-phase memory initialization issues. Advanced BIOS Settings & The Impact of Updates BIOS updates contain new AGESA (AMD) or MRC (Intel) code that can change overclocking behavior. A newer BIOS isn't always better for a tuned profile. If a previously stable OC fails after an update, consider reverting. Memory Context Restore (MCR): This feature skips memory training to speed up boot times. It's convenient but can hide instability. It is strongly recommended to disable MCR during the entire tuning and stability testing process. Power Down Mode: A power-saving feature. Disabling it can slightly improve latency but should often be done in conjunction with disabling MCR to avoid issues. Section 7: Conclusion Achieving a verifiably stable DDR5 memory overclock is a complex but rewarding endeavor. It demands a nuanced, platform-dependent approach: maximizing frequency in Gear 2 for Intel, and finding the highest synchronous 1:1 frequency for AMD. True stability is not a single benchmark pass, but a spectrum validated across a gauntlet of tests stressing the DRAM, the IMC, and the system's thermal limits under combined load. Ultimately, thermal management has been elevated to a primary prerequisite. The extreme temperature sensitivity of high-performance DDR5 means that active cooling is no longer an option for enthusiasts but a necessity. By adopting a methodical approach and committing to a rigorous validation protocol, you can successfully navigate the complexities of DDR5 and achieve a tangible, reliable increase in system performance. Affiliate Disclosure: Faceofit.com is a participant in the Amazon Services LLC Associates Program. As an Amazon Associate we earn from qualifying purchases. Share What's your reaction? Excited 0 Happy 0 In Love 0 Not Sure 0 Silly 0

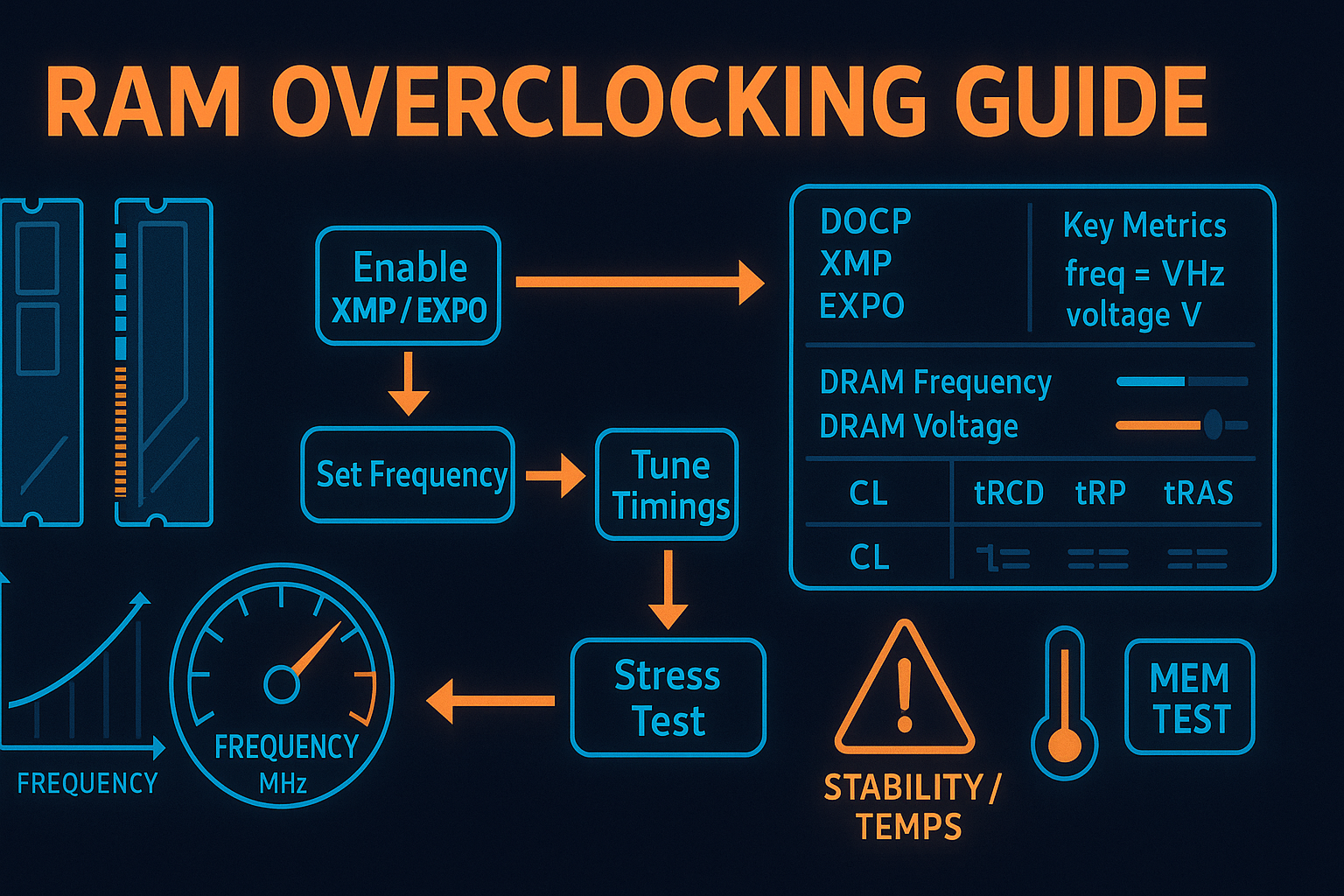

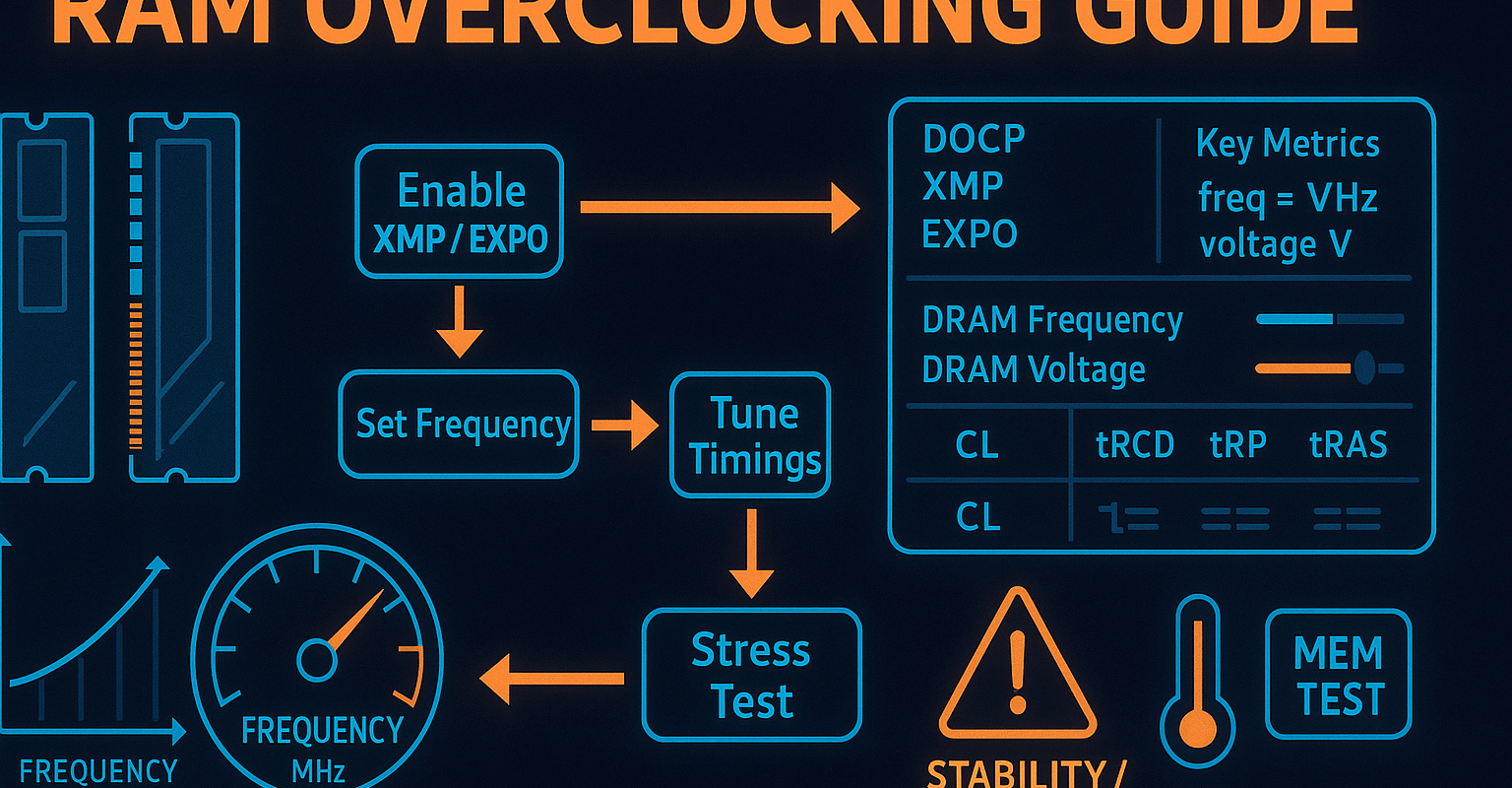

A Methodical Approach to Stable DDR5 Memory Overclocking Unlock the true potential of your system with our deep dive into DDR5 tuning, from architectural fundamentals to platform-specific strategies. Note: If you buy something from our links, we might earn a commission. See our disclosure statement. The Overclocking Workflow at a Glance Before diving into the details, this flowchart provides a high-level overview of the methodical tuning process. Follow these steps to systematically find your system's limits and achieve a stable overclock. Start: Research ICs & Cooling BIOS Setup: Load Defaults, Enable XMP/EXPO Find Max Frequency (Increase & Quick Test) Tune Primary Timings (tCL, tRCD, tRP) Tune Secondary & Tertiary Timings Fine-Tune Voltages (Minimize for Stability) Full Stability Test? (TM5, y-cruncher, Karhu) Yes No Stable Overclock Achieved! Section 1: Foundational Concepts The jump to DDR5 is the biggest architectural shift in memory tech in years. To get a stable overclock, you need to understand the new rules. This section covers the core ideas you must know before you touch a single BIOS setting. Architectural Shifts from DDR4 DDR5 isn't just faster DDR4; it's a redesign. Key changes impact overclocking: dual 32-bit sub-channels, on-DIMM power management (PMIC), and on-die ECC. On-DIMM PMIC: Voltage regulation is now on the DIMM itself. This allows for cleaner power but can be a limiter. Some early or budget PMICs are voltage-locked (often to 1.435V), creating a hard ceiling for overclocking regardless of the memory chips' potential. On-Die ECC (ODECC): This is an internal feature to correct single-bit errors inside the DRAM chip, improving manufacturing yields. It is not the same as system-level ECC and will not protect against overclocking-induced instability between the CPU and RAM. Infographic: Memory Channel Architecture DDR4 DIMM 1 x 64-bit Channel A single, wider path for data. DDR5 DIMM 32-bit 32-bit Two independent, narrower channels for more parallelism and efficiency. Identifying Your DDR5 ICs The overclocking potential of your RAM is decided by the memory chips (ICs) on the PCB. Identifying them is your first step. The main players are SK Hynix, Samsung, and Micron, with Hynix A-die being the current king for enthusiasts. Tools like CPU-Z and HWiNFO64 are essential, while specialized software like Thaiphoon Burner can read the module's SPD data for precise die revision info. The Critical Role of Thermal Management DDR5 is extremely sensitive to heat. Pushing voltage and tight timings generates significant heat, and stability can plummet once DIMMs go above 50-55°C. Active cooling is not optional for serious overclocking. Don't forget hidden heat sources: your GPU's exhaust can directly raise DIMM temperatures, turning a stable memory-only test into a failing gaming session. Interactive Chart: Thermal Impact on Stability This chart illustrates how the maximum stable Refresh Interval (tREFI), a key performance timing, degrades as memory temperature rises. Section 2: The Voltage Triad Stable overclocking requires balancing power to three areas: the DRAM modules, the CPU's Integrated Memory Controller (IMC), and the System Agent (SA) or SoC. More voltage isn't always better; too much can hurt stability. Interactive Chart: CPU SA Voltage Rollover Demonstrates how increasing System Agent (SA) voltage helps up to a point, after which it can introduce noise and reduce stability. The goal is to find the minimum stable voltage. Safe Voltage Baselines for 24/7 Operation XMP/EXPO profiles often use more voltage than needed. Manual tuning can reduce heat and power. Here are some safe starting points for daily use, synthesized from expert guides. Voltage Rail Platform Common Names Enthusiast 24/7 Range General Max Safe (Daily) DRAM VDDBothDRAM Voltage1.35V - 1.45V~1.55V DRAM VDDQBothDRAM VDDQ Voltage1.35V - 1.45V~1.55V CPU SAIntelVCCSA, System Agent1.20V - 1.30V1.35V CPU VDDQ TXIntelCPU VDDQ, IVR TX1.30V - 1.40V1.45V IMC VoltageIntelCPU VDD2, MC Voltage1.35V - 1.45V1.50V CPU VSOCAMDSOC Voltage1.25V - 1.28V1.30V (Hard Limit) VDDIO/MCAMDCPU VDDIO1.35V - 1.40V1.40V Section 3: Deconstructing Memory Timings Frequency sets the speed limit, but timings dictate the efficiency. Tightening sub-timings (secondary and tertiary) is where you'll find the biggest performance gains beyond XMP. Primary Timings: The Foundation These four values (tCL, tRCD, tRP, tRAS) are the most well-known. While tCL (CAS Latency) gets the most attention, they all work together. A good rule of thumb for tRAS is to set it to approximately tCL + tRCD to ensure a row stays open long enough for data access before precharging. Unlocking Performance with Secondary Timings These have a profound impact on performance. tRFC and tREFI are the most important; a low tRFC (faster refresh) and high tREFI (less frequent refreshes) dramatically boost performance but are highly temperature-sensitive. The "Activate" timings (tRRD_L, tRRD_S, tFAW) govern how quickly the memory controller can switch between data locations. A key optimization is setting tFAW based on the formula $tFAW ge 4 times tRRD_S$. Timing IC Type Safe Starting Value Aggressive Target tRFCHynix A/M-Die480360 - 400 tREFIHynix A/M-Die3276865535 tRRD_LAll128 tRRD_SAll84 - 8 tFAWAll4816 - 32 tWRAll6048 An Introduction to Tertiary Timings This is the deepest level of tuning. Tertiary, or "turnaround" timings, control the delays when switching between operations (read-to-write) and physical locations on the DIMMs. They often have suffixes like `_sg` (Same Group), `_dg` (Different Group), and `_dd` (Different DIMM). While motherboard auto-training is usually sufficient, manual tuning of these can provide small, measurable gains for competitive benchmarkers. Section 4: Platform-Specific Tuning Filter by Platform: Show All Intel AMD Intel and AMD handle memory differently. Intel uses "gears" to hit high frequencies, while AMD focuses on a 1:1 synchronous link for low latency. You need to use the right strategy for your platform. Part A: Intel Z690/Z790 Platforms Intel's strategy is to use Gear 2 (a 1:2 ratio for the IMC) to enable very high DRAM frequencies (7200 MT/s+). While Gear 1 (1:1) offers the lowest latency, it's not stable at DDR5 speeds. Gear 4 is for extreme competitive benchmarking only and is not useful for daily performance. Therefore, the goal is always to find the highest stable frequency in Gear 2 and then tighten timings. Establish Baseline: Load XMP. Find Max Frequency: Increase frequency in steps until unstable. Tune Primary Timings: Lower tCL, tRCD, tRP. Optimize Sub-timings: Tighten tRFC, tREFI, etc. Fine-tune Voltages: Lower SA, IMC, and VDDQ TX to the minimum stable values. Part B: AMD AM5 Platforms For AMD, the goal is to find the highest memory frequency that can run with a 1:1 ratio between the memory clock (MCLK) and memory controller clock (UCLK). Going beyond this "sweet spot" introduces a massive latency penalty. The Infinity Fabric clock (FCLK) should also be tuned as high as possible (e.g., 2000-2200 MHz) as it also directly impacts system latency. Establish Baseline: Load EXPO, then force UCLK=MCLK mode. Find Max Sync Frequency: Increase frequency until the 1:1 ratio is unstable. Tune Primary Timings: Lower tCL, tRCD, tRP. Optimize Sub-timings: Use community guides for aggressive but stable values. Fine-tune Voltages: Lower VSOC (never above 1.30V) and VDDIO. Infographic: AMD AM5 Synchronicity Optimal: 1:1 Ratio UCLK = MCLK Lowest latency, best performance. The "sweet spot" is 6000-6400 MT/s. Sub-optimal: 1:2 Ratio UCLK = MCLK / 2 High latency penalty negates frequency gains. Avoid this. Section 5: The Gauntlet for Stability A truly stable overclock doesn't crash, ever. This requires more than one test. You need a suite of tools to stress the DRAM, the IMC, and the system's thermal limits. Essential Monitoring and Diagnostic Software Before stress testing, you need to see what's happening. HWiNFO64 is non-negotiable for monitoring DIMM temperatures, voltages, and clocks in real-time. AIDA64's Memory Benchmark is excellent for quick performance checks to see if your changes are actually improving bandwidth and latency. Pro Tip: True stability is proven under a combined load. Run a GPU stress test like FurMark alongside your RAM test to simulate the worst-case thermal scenario of a heavy gaming session. Tool Name Primary Purpose Pass Criteria TestMem5 (TM5)Quickly finds timing/voltage errors10+ cycles with a custom profile (anta777 Absolut) y-cruncherStresses the CPU's IMC2+ hours, focusing on the VT3 component Karhu RAM TestLong-duration, heat-soak error detection3-6 hours error-free for daily stability The Final Boss: The Cold Boot Test Some settings may be stable after a warm reboot but can fail during the motherboard's memory training sequence on a cold power-on. This reveals "training stability" issues. Periodically perform a full shutdown and cold boot to ensure your system can reliably initialize with the overclocked settings. Interactive Troubleshooting Decision Tree Stuck? Answer the questions below to quickly diagnose your overclocking issue and get targeted advice. Section 6: Troubleshooting & Advanced Tips Even with a methodical approach, you'll run into walls. Here’s how to diagnose common failure scenarios and understand advanced settings that can make or break your overclock. Diagnosing Common Failure Scenarios Failure to POST / Boot Loop Cause: Frequency too high for the IMC, timings too tight, or insufficient SA/VSOC/DRAM voltage. Solution: Clear CMOS to reset BIOS. Re-apply last known stable settings, then loosen the one parameter you just changed. OS Instability / BSODs Cause: Marginal voltage instability or thermal issues. A `MEMORY_MANAGEMENT` BSOD is a dead giveaway. Solution: Slightly increase DRAM VDD or SA/VSOC. Check DIMM temps in HWiNFO64; if they exceed 55°C, improve airflow. Interpreting Motherboard Q-Codes That little two-digit display on your motherboard is your best friend when the screen stays black. These codes can help you pinpoint memory training issues. Q-CodePlatformCommon Meaning 15, 55, C5BothMemory initialization/detection failure. The board is struggling to train the RAM. 0dAMDMemory training or compatibility issue. Common with unstable EXPO profiles. 30, 31IntelEarly-phase memory initialization issues. Advanced BIOS Settings & The Impact of Updates BIOS updates contain new AGESA (AMD) or MRC (Intel) code that can change overclocking behavior. A newer BIOS isn't always better for a tuned profile. If a previously stable OC fails after an update, consider reverting. Memory Context Restore (MCR): This feature skips memory training to speed up boot times. It's convenient but can hide instability. It is strongly recommended to disable MCR during the entire tuning and stability testing process. Power Down Mode: A power-saving feature. Disabling it can slightly improve latency but should often be done in conjunction with disabling MCR to avoid issues. Section 7: Conclusion Achieving a verifiably stable DDR5 memory overclock is a complex but rewarding endeavor. It demands a nuanced, platform-dependent approach: maximizing frequency in Gear 2 for Intel, and finding the highest synchronous 1:1 frequency for AMD. True stability is not a single benchmark pass, but a spectrum validated across a gauntlet of tests stressing the DRAM, the IMC, and the system's thermal limits under combined load. Ultimately, thermal management has been elevated to a primary prerequisite. The extreme temperature sensitivity of high-performance DDR5 means that active cooling is no longer an option for enthusiasts but a necessity. By adopting a methodical approach and committing to a rigorous validation protocol, you can successfully navigate the complexities of DDR5 and achieve a tangible, reliable increase in system performance.
