The quest for ultimate PC performance has reached a new summit with the arrival of DDR5 8800 MT/s memory. As of 2025, this represents the apex of consumer RAM speed, pushing beyond old barriers thanks to the revolutionary CUDIMM standard.

Note: If you buy something from our links, we might earn a commission. See our disclosure statement.

However, harnessing this power isn’t simple—it demands the latest Intel Z890 platform and a compatible Core Ultra 200S series CPU. This guide is your complete resource for navigating this high-speed landscape.

We provide an in-depth review of the top contenders from G.Skill, TeamGroup, and Corsair, complete with performance benchmarks, overclocking analysis, and a clear verdict to help you decide if this investment is right for your elite build. The Ultimate Guide to DDR5 8800MT/s Memory - Faceofit.com

HARDWARE DEEP DIVE

The Apex of Speed: Your Guide to DDR5-8800 Memory

Pushing past limits once thought impossible, DDR5-8800 is here. This guide unpacks the CUDIMM technology, platform needs, and real-world gains of the fastest consumer memory available.

Updated: October 18, 2025

The CUDIMM Revolution

DDR5-8800's existence is owed to a new standard: CUDIMM (Clocked Unbuffered Dual In-line Memory Module). It's a fundamental shift required by JEDEC for any DDR5 module running at 6400 MT/s or faster.

The problem at these speeds is signal integrity. A clock signal sent from the CPU to traditional UDIMM modules can degrade, causing timing errors and instability. CUDIMM solves this by placing a Client Clock Driver (CKD) chip directly on the module.

This CKD chip acts like a signal booster. It takes the clock signal from the CPU, cleans and strengthens it, and then distributes a perfect, synchronized signal to all the DRAM chips. This ensures rock-solid stability at extreme frequencies.

Signal Path Comparison

Traditional UDIMM (High Speed)

CPU
Degraded Signal
DRAM
DRAM

CUDIMM (High Speed)

CPU
CKD
DRAM
DRAM

The CKD chip intercepts, cleans, and redrives the clock signal for perfect stability.

Your Ticket to 8800 MT/s: Platform Requirements

Intel Core Ultra 200S CPU

This speed is exclusive to Intel's "Arrow Lake" processors. The Integrated Memory Controller (IMC) is built to handle these frequencies.

Intel Z890 Motherboard

The Z890 chipset is engineered with the power delivery and signal integrity needed for 8800 MT/s. Top-tier B860 boards might work, but it's a gamble.

AMD Not Supported

Current AMD AM5 platforms do not support the CUDIMM PLL modes. The modules will run in a slower bypass mode, defeating the purpose of the purchase.

Is This Level of Speed Right for You?

Ideal User Profile:

  • ✓Competitive Overclockers & Benchmarkers: Those who chase world records in benchmarks like AIDA64 and Geekbench will see the largest benefits.
  • ✓Maximum Performance Enthusiasts: Builders with top-of-the-line CPUs and GPUs who want to eliminate every possible bottleneck, regardless of cost.
  • ✓Future-Proofers: Users building a new high-end system who want the absolute fastest components available today to maximize the system's longevity at the top tier.

Consider a Different Tier If:

  • ✗You're a Mainstream Gamer: The cost-to-performance gain over a quality 6400-7200 MT/s kit is not substantial for most gaming scenarios. That money is better spent on a GPU upgrade.
  • ✗You Use a Mid-Range CPU: High-speed memory can only perform as well as the CPU's memory controller allows. Pairing this RAM with anything less than a top-tier CPU is a waste of potential.
  • ✗You're on a Budget: This is a premium, enthusiast-grade product. Excellent performance for most users can be had for less than half the price with more mainstream DDR5 kits.

The 8800 MT/s Contenders

All flagship kits use hand-binned SK Hynix M-die ICs. The difference comes down to design, features, and price.

Feature G.Skill Trident Z5 CK TeamGroup T-Force Xtreem CKD Corsair Vengeance RGB Corsair Vengeance Silver
Timings 42-55-55-140 42-54-54-96 42-54-54-141 42-54-54-141
XMP Profiles Single 8800 MT/s (Gear 2) 8800 MT/s + 9466 MT/s Single 8800 MT/s Single 8800 MT/s
Heat Spreader Piano Black, Mirror Finish Narvik Black, Sandblasted Anodized Aluminum + RGB Anodized Silver, Minimalist
Module Height 42 mm 48.8 mm 56 mm 44 mm
RGB Control Optional / Motherboard Sync Optional / Motherboard Sync Corsair iCUE Required None
Approx. Price (USD) Check on Marketplace Check on Marketplace Check on Marketplace Check on Marketplace

Performance Under Pressure

Productivity & Content Creation Gains

Performance uplift of 8800 MT/s CL42 vs a 6400 MT/s CL52 kit.

Gaming: Smoother Gameplay

Uplift in average and 1% low FPS. Higher 1% lows mean less stuttering.

Beyond XMP: Manual Overclocking Potential

While XMP offers incredible "plug-and-play" speed, these kits are built for more. For enthusiasts, manual tuning can unlock performance nearing the 9200-9600 MT/s range. Success, however, depends on several factors.

  • The Silicon Lottery: Not all CPUs or memory modules are created equal. A "golden sample" CPU with a strong Integrated Memory Controller (IMC) is crucial.
  • Key Voltages: Pushing past 8800 MT/s requires careful voltage adjustments. You will need to fine-tune the memory's VDD/VDDQ (typically to 1.5-1.55V) and the CPU's System Agent (SA) voltage.
  • Cooling: Higher voltages mean more heat. Proper case airflow is essential to prevent thermal throttling and maintain stability during long sessions.

The G.Skill and TeamGroup kits are often favored by overclockers for their proven ability to scale with voltage and patient tuning.

The Overclocking Balance

Voltage / Heat Frequency (MT/s)

XMP

Stable

Manual OC

Tuning

Limit

Unstable

Pushing frequency requires more voltage, increasing heat and hitting a stability wall.

Meet the Kits: A Closer Look

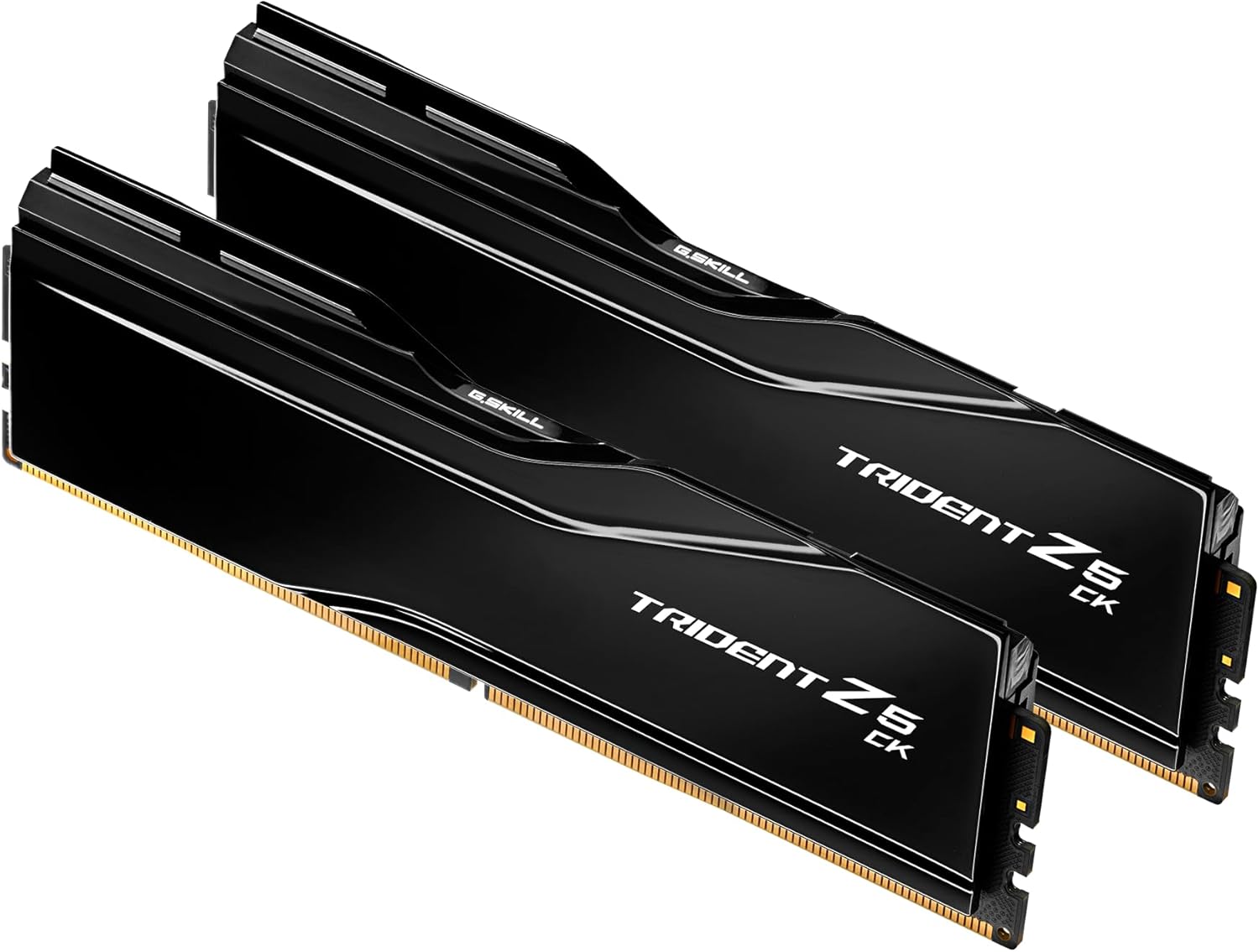

G.Skill Trident Z5 CK

The Overclocker's Choice

G.SKILL Trident Z5 CK Memory Kit

Known for its exceptional binning process, the Trident Z5 CK is engineered for enthusiasts who want to push their hardware to the absolute limit. Its looser tRAS timing (140) often provides stability at higher manual overclocks, making it a favorite for competitive benchmarking.

  • Exceptional overclocking headroom past 9200 MT/s.
  • Sleek, mirror-finish heat spreader design.
Check on Amazon Check on Newegg

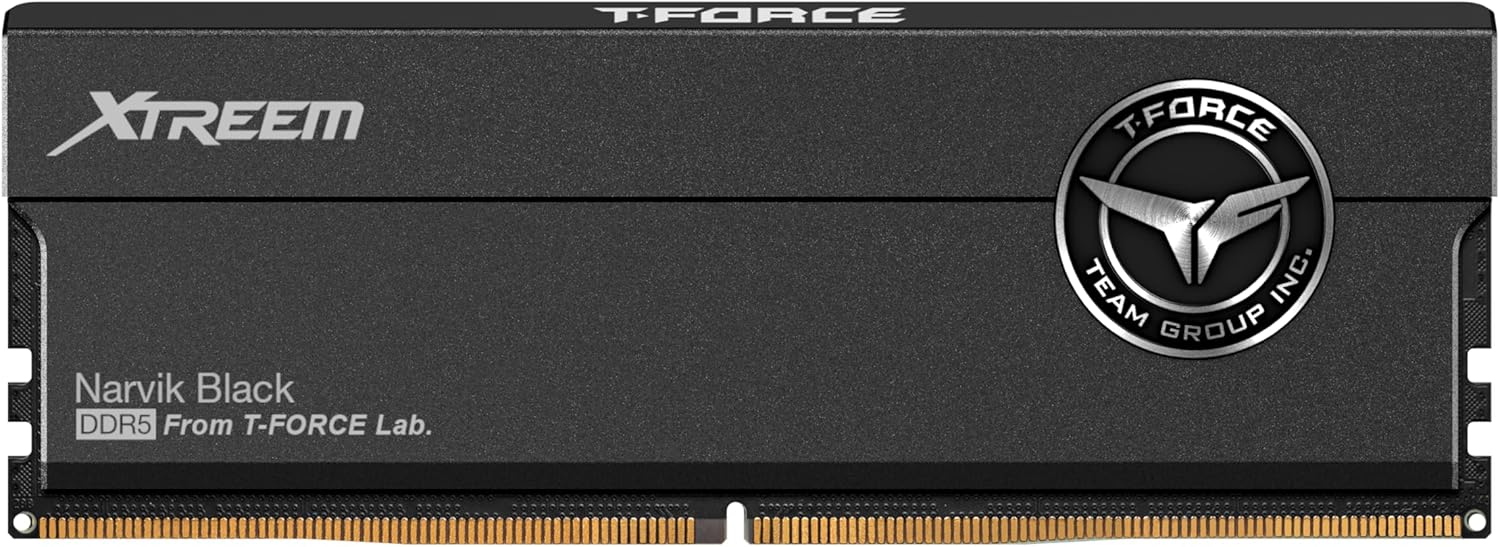

TeamGroup T-Force Xtreem CKD

The Value Champion

T-Force Xtreem CKD Memory Kit

TeamGroup's entry stands out with the tightest timings (tRAS at 96) and an aggressive secondary XMP profile targeting 9466 MT/s. This makes it an excellent "set-and-forget" option for users who want top-tier performance without extensive manual tuning, all at a competitive price point.

  • Best price-to-performance ratio in its class.
  • Includes a valuable 9466 MT/s XMP profile.
Check on Amazon Check on Newegg

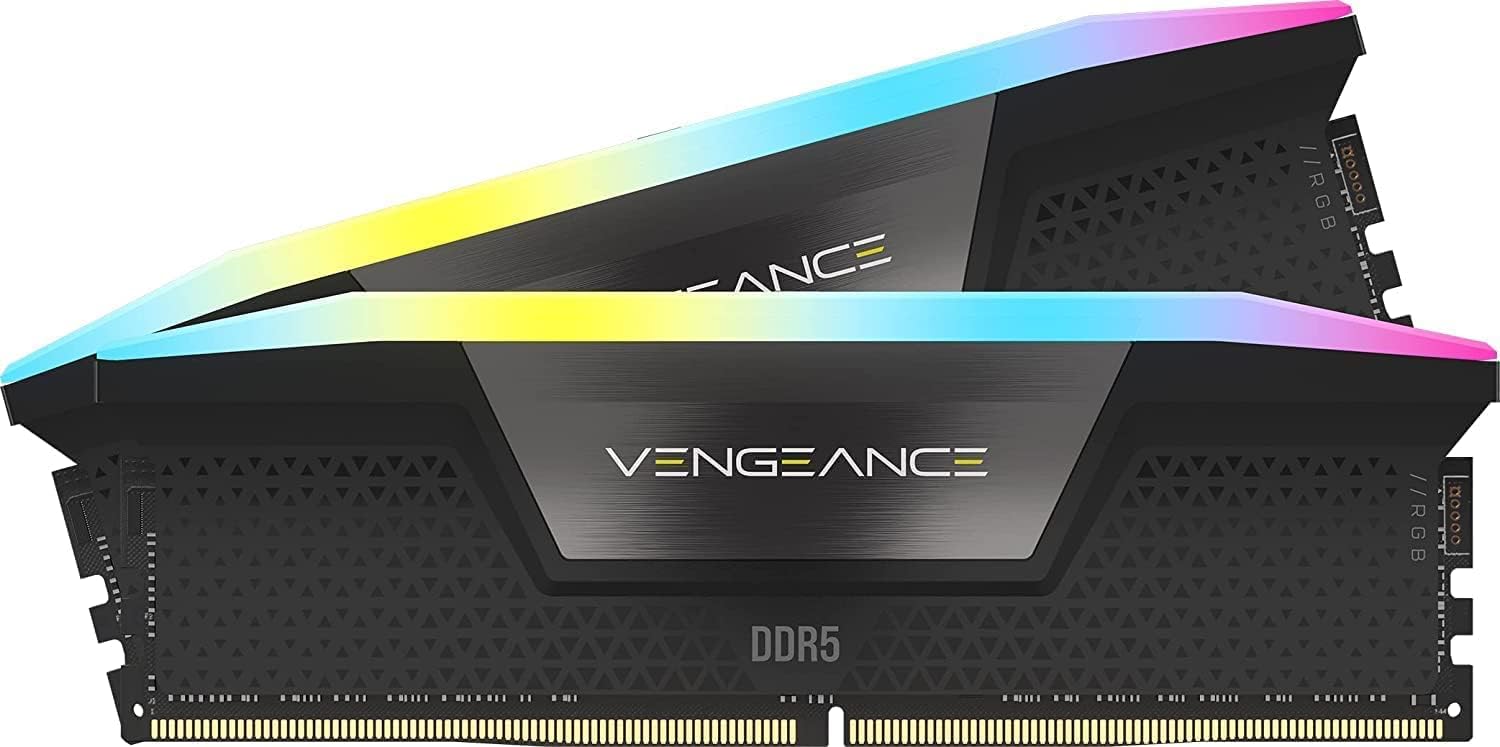

Corsair Vengeance RGB

The Style Icon

Corsair Vengeance RGB Memory Kit

Corsair focuses on aesthetics and ecosystem integration. This kit features a robust heat spreader with a panoramic RGB light bar, fully controllable via iCUE software. An Extreme OC PMIC (Power Management Integrated Circuit) provides clean power for stability, though it comes at the highest price.

  • Best-in-class RGB lighting and software control.
  • Lifetime warranty and excellent build quality.
Check on Amazon Check on Newegg

Corsair Vengeance Silver

The Minimalist Performer

Corsair Vengeance Silver Memory Kit

This kit offers the exact same performance and quality ICs as its RGB counterpart but without the lighting. It's a premium, no-frills option for builders who prefer a clean, minimalist aesthetic or have tight clearance requirements where the taller RGB heat spreader won't fit.

  • Identical performance to the RGB model.
  • Shorter height for better CPU cooler compatibility.
Check on Amazon Check on Newegg

Heatsinks & Thermal Management

At 1.45V, DDR5-8800 modules generate significant heat. Effective thermal management is not just for looks; it is essential for maintaining stability and preventing performance degradation. High temperatures can introduce errors and cause the system to crash, especially during prolonged, intensive tasks or overclocking.

Each manufacturer approaches this differently:

  • G.Skill & TeamGroup: Utilize thick, multi-piece aluminum heatsinks with a large surface area to maximize passive heat dissipation into the case's airflow.
  • Corsair: Employs a similar aluminum construction but must also integrate its RGB lighting, which adds a layer of complexity and can slightly increase module temperature.

For any of these kits, good case airflow is a mandatory requirement to whisk away the heat radiated by the modules.

The Importance of Cooling

Cool & Stable

Consistent Performance

→

Hot & Unstable

Errors & Throttling

Proper airflow prevents heat buildup, ensuring the memory operates reliably at its rated speed.

Decoding the Specs: A Buyer's Guide

Primary Timings

CL-tRCD-tRP-tRAS

These numbers measure latency in clock cycles. While all are important, CL (CAS Latency) is the most cited. For these kits, the TeamGroup's exceptionally low tRAS of 96 can aid in specific workloads, but for most users, the differences are minor.

Calculating True Latency

The most accurate measure of performance is "true latency," measured in nanoseconds (ns). It combines both speed and timings.

True Latency (ns) = (CAS Latency × 2000) / Speed (MT/s)

For an 8800 MT/s CL42 kit: (42 × 2000) / 8800 = 9.55 ns. This demonstrates how raw speed compensates for higher CL numbers, resulting in extremely responsive memory.

The 48GB Standard

2x24GB Modules

The 48GB kit (2x24GB) is the new high-performance standard. These non-binary capacity modules offer a significant capacity increase over traditional 32GB (2x16GB) kits without the stability challenges of running four DIMMs at extreme speeds.

The Unsung Hero: PMIC

Power Management IC

The PMIC is a chip on the DDR5 module that regulates voltage. A high-quality PMIC, like the "Extreme OC" version on the Corsair kits, provides cleaner, more stable power. This is critical for maintaining stability at 8800 MT/s and can provide a slight edge in manual overclocking.

Component Quality

ICs & PCB

All these kits use top-bin SK Hynix M-die Integrated Circuits (ICs), the best available for high frequency. They are built on multi-layer Printed Circuit Boards (PCBs) to ensure clean signals between the components, which is vital for stability.

Frequently Asked Questions

Is DDR5-8800 worth the price for gaming?

For most gamers, the performance gain from 6400 MT/s to 8800 MT/s is noticeable but may not justify the significant price premium. The biggest benefit is seen in 1% low FPS, leading to smoother gameplay. It's most valuable for competitive players and enthusiasts with high-end CPUs and GPUs seeking maximum frame rates.

Will these kits work on my AMD AM5 system?

No. While the modules will physically fit, current AMD AM5 platforms do not support the CUDIMM architecture correctly and will not run at the advertised speeds. These kits are designed exclusively for Intel Core Ultra 200S ("Arrow Lake") CPUs and Z890 motherboards.

What is "Gear 2" mode and why is it used?

Gear 2 mode means the CPU's memory controller runs at half the speed of the memory frequency. At extreme speeds like 8800 MT/s, this is necessary for stability on current CPUs. While Gear 1 (a 1:1 ratio) offers lower latency, it is not achievable at these high frequencies. All 8800 MT/s kits are designed and optimized for Gear 2 operation.

What's Next on the Horizon?

DDR5-8800 is the peak for today's platforms, but the technology is far from its limit. Engineers are already testing kits that break the 10,000 MT/s barrier. Expect these next-generation speeds to arrive with future CPUs and motherboards, likely requiring even more advanced module designs and cooling solutions. The race for speed never stops.

Final Verdict & Recommendations

Best Overall & Overclocking

G.Skill Trident Z5 CK

A well-tuned XMP profile and proven headroom to 10,000 MT/s make this the top pick for those chasing maximum performance and benchmark scores.

Best Value

Best Value at the High End

TeamGroup T-Force Xtreem CKD

Identical real-world performance to competitors at a lower price. The bonus 9466 MT/s XMP profile is an exceptional feature for expert tuners.

Best Aesthetics & Ecosystem

Corsair Vengeance RGB CUDIMM

For builders who want stunning looks and are invested in the Corsair iCUE software. Its bright, customizable RGB is unmatched, but it comes at a premium price.
