Executive Summary: The jump from 6Gb/s (SAS-2) to 12Gb/s (SAS-3) HBAs wasn't just about speed. It was a fundamental architectural shift to handle the explosive IOPS of SSDs. For HDD users, the difference is negligible. For all-flash arrays, a 12Gb/s HBA is mandatory. This guide will help you choose the right card for your specific needs, balancing performance, cost, and practicality.

The Core Technologies

The Evolution of Serial Attached SCSI (SAS)

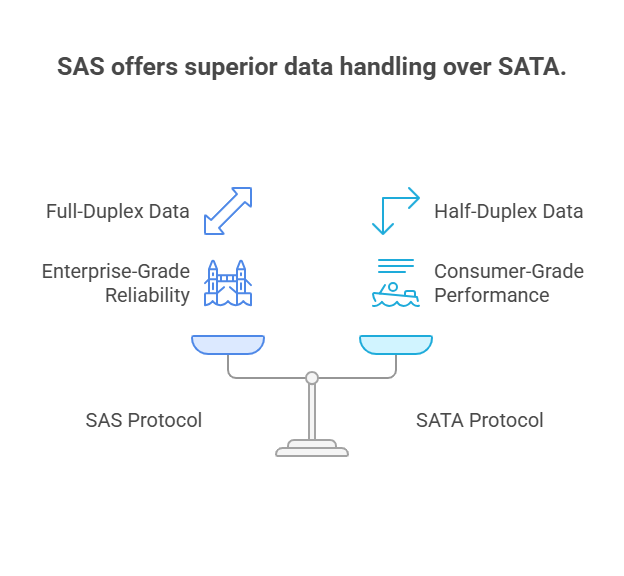

SAS is an enterprise-grade protocol known for its reliability and performance. Unlike consumer-grade SATA which is half-duplex (can only send or receive data at one time), SAS is full-duplex, allowing simultaneous reads and writes. This gives it a major edge in mixed-workload server environments.

The PCI Express 3.0 Backbone

PCIe 3.0 was a crucial upgrade, offering nearly double the real-world bandwidth of PCIe 2.0 thanks to a more efficient encoding scheme. The HBAs we're discussing use an 8-lane (x8) PCIe 3.0 connection, providing a massive ~7.88 GB/s data pipe to the host system. This bandwidth was absolutely necessary to prevent the host connection from bottlenecking the new 12Gb/s SAS controllers.

Diving Deeper: SAS Protocol Features

Beyond raw speed, the SAS protocol includes several enterprise-class features that differentiate it from SATA and are crucial for high-performance, high-reliability storage systems.

Full-Duplex vs. Half-Duplex

The ability of SAS to perform simultaneous reads and writes (full-duplex) is a fundamental advantage over SATA's one-way-at-a-time communication (half-duplex). In a server environment where a storage array is constantly being hit with a mix of read and write requests from multiple users or applications, full-duplex communication significantly improves overall throughput and reduces latency.

Deep Command Queuing

This is arguably the most significant performance differentiator for random I/O workloads. While SATA's Native Command Queuing (NCQ) is limited to a queue depth of 32 commands, the SAS protocol supports queue depths of 254 commands or more. This allows the HBA and drives to receive, store, and intelligently reorder a massive number of I/O requests to execute them in the most physically efficient order, dramatically reducing seek times on HDDs and optimizing flash memory access on SSDs.

SAS Transport Protocols

The SAS standard uses a set of three protocols to manage the storage fabric:

• Serial SCSI Protocol (SSP): For command-level communication with native SAS devices.
• Serial ATA Tunneling Protocol (STP): Encapsulates SATA commands, allowing a SAS controller to seamlessly manage cheaper SATA drives. This backward compatibility is key to building flexible, tiered storage systems.
• Serial Management Protocol (SMP): Used by SAS expanders (devices like network switches) to manage the topology and routing within large storage arrays.

Architectural Analysis: Inside the Controllers

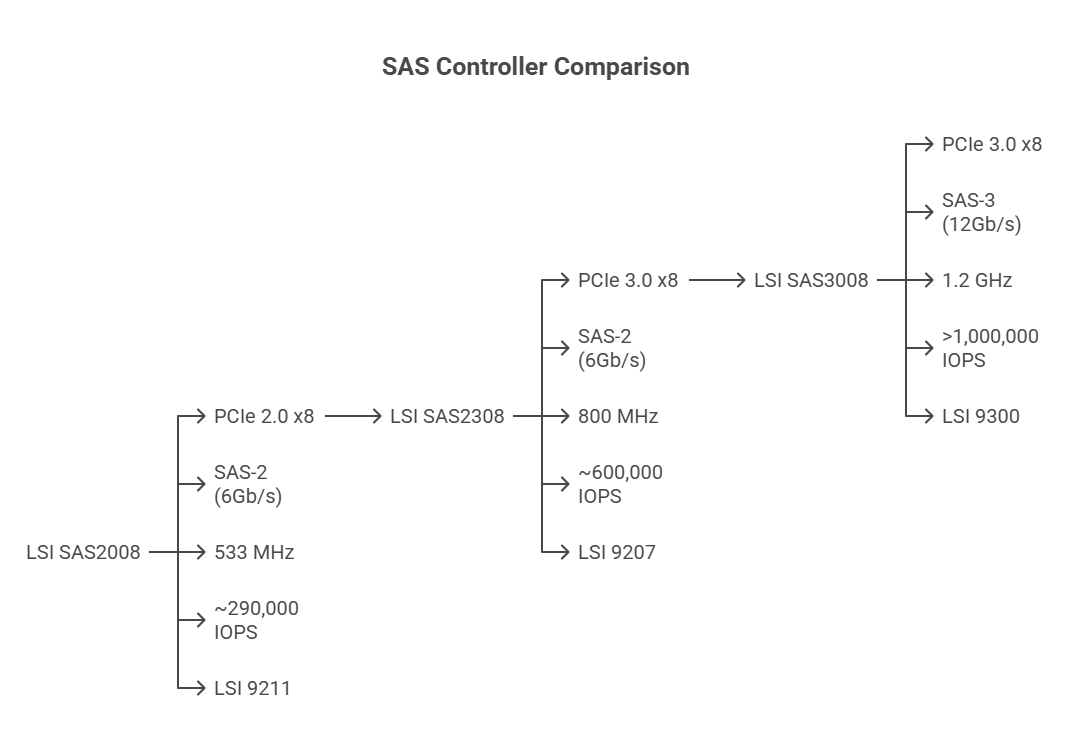

The real difference between the HBA generations lies in the I/O controller (IOC) chip. This is the brain of the operation, and the leap from the SAS2308 to the SAS3008 was significant.

The 6Gb/s Workhorse: LSI SAS2308

Found in the popular LSI 9207-series, the SAS2308 pairs a 6Gb/s SAS front-end with a modern PCIe 3.0 host interface. It's built on an 800 MHz PowerPC processor, capable of handling around 600,000 IOPS. For any system based on mechanical hard drives, this controller is more than powerful enough.

The 12Gb/s Successor: LSI SAS3008

Powering the LSI 9300-series, the SAS3008 was built for the SSD era. It features a much faster 1.2 GHz PowerPC core, boosting its processing capability to over 1,000,000 IOPS. This extra horsepower is essential to manage the torrent of I/O requests from an all-flash array without breaking a sweat. Both controllers are built on LSI's proven Fusion-MPT (Message Passing Technology) architecture, designed for high performance and streamlined driver development.

Performance: Where the Rubber Meets the Road

With Mechanical Hard Drives (HDDs)

Let's be blunt: if you are only using spinning hard drives, a 12Gb/s HBA is a waste of money. The fastest enterprise HDDs barely scratch 230 MB/s, which doesn't even come close to saturating a 6Gb/s link. The drives are the bottleneck, period.

With Solid-State Drives (SSDs)

This is where it gets interesting. A 6Gb/s SSD will top out around 550 MB/s, a limit imposed by its own interface. Both HBA generations can handle this easily. But a 12Gb/s SSD can push over 1,100 MB/s. To see that speed, you absolutely need a 12Gb/s HBA. Connecting a 12Gb/s drive to a 6Gb/s card will cut its performance in half.

Random I/O (IOPS) Deep Dive

For workloads like databases or virtualization, IOPS (I/O Operations Per Second) is more important than raw throughput. This is where the SAS3008's more powerful processor shines. A single enterprise SSD can generate tens of thousands of IOPS. An array of them can create a command storm that would overwhelm a lesser controller. The SAS3008's ability to handle over a million IOPS means it has the headroom to manage even a large all-flash array without becoming the bottleneck, ensuring the drives are always the limiting factor.

Practical Matters: Cost, Cooling, and Cables

Performance isn't everything. The practical differences between these cards can be just as important, especially for home lab and small business builders.

Power, Thermal, and Acoustic Profile

The higher performance of the 12Gb/s HBAs comes at a cost: more power and more heat.

The LSI 9300-series cards draw significantly more power (around 13-14W) compared to the 9207-series (~9W). This extra wattage turns into heat. While fine in a server chassis with jet-engine fans, a 9300-series card in a quiet desktop case will often overheat without a dedicated fan strapped to its heatsink. This is a critical consideration for non-enterprise builds.

Firmware: The Critical Role of IT vs. IR Mode

The firmware loaded onto an HBA dictates its mode of operation. For software-defined storage like TrueNAS (ZFS) or UnRAID, this is the single most important configuration detail.

• IT (Initiator-Target) Mode: This firmware turns the card into a true HBA, offering direct, unaltered "pass-through" access to the drives. This is mandatory for ZFS and other software RAID solutions, as they need to manage the disks directly to ensure data integrity.
• IR (Integrated RAID) Mode: This firmware enables basic hardware RAID functions (RAID 0, 1, 10). This mode is undesirable for software RAID as it hides the drives from the OS and can interfere with health monitoring (S.M.A.R.T.).

The Art of Cross-Flashing: An Enthusiast's Guide

A popular cost-saving strategy in the home lab community is to buy inexpensive used OEM RAID cards (like a Dell PERC H310 or IBM M1015) and "cross-flash" them with the official LSI IT mode firmware. This process converts a cheap RAID card into a fully functional HBA for a fraction of the price of a retail model. While it requires some technical skill and carries a small risk, it's a proven method for building powerful storage servers on a budget. The process generally involves:

1. Creating a bootable USB drive with the necessary flashing utilities and firmware files.
2. Erasing the existing OEM firmware from the card.
3. Flashing the new LSI IT mode firmware and BIOS onto the card.
4. Setting a unique SAS address for the card.

Total Cost of Ownership (TCO)

When comparing these cards, it's important to look beyond the initial purchase price. The 9300-series has a higher TCO due to several factors: a higher second-hand market price, the need for more expensive SFF-8643 cables, and higher long-term electricity costs from its increased power consumption. The higher TCO must be justified by a clear and present need for its performance capabilities.

Synthesis and Recommendations

So, which card should you buy? It all depends on your use case. We've created profiles to help you decide. Click on the profile that best matches you to see our recommendation.
