The world of high-end desktop computing is changing. The once-clear line between rock-solid workstation stability and bleeding-edge enthusiast performance has blurred. Welcome to the new frontier: overclocking server-grade ECC Registered DIMMs on the formidable AMD Threadripper PRO platform. This guide provides an expert-level methodology to help you safely extract every drop of performance from your workstation investment.

1. The New Frontier: Stability Meets Speed

1.1 A Paradigm Shift

For years, Error-Correcting Code (ECC) memory was the exclusive domain of servers and workstations, where data integrity is paramount. Overclocking was for gamers and enthusiasts. Today, with motherboards like the ASUS Pro WS WRX90E-SAGE SE and ASRock WRX90 WS EVO, that's no longer true. These boards are built for tuning, and memory makers like V-Color and Kingston are now producing overclockable ECC RDIMMs with AMD EXPO profiles.

1.2 The Target Platform

Our focus is on a powerhouse system: an AMD Ryzen™ Threadripper™ PRO 7000 WX-Series CPU (like the 7955WX) on a WRX90 chipset motherboard, equipped with Samsung DDR5 5600MT/s ECC RDIMMs. This combination offers a unique, officially supported opportunity to push professional-grade hardware to new heights.

1.3 The "Why Now?" - A Confluence of Technology

This isn't an accident. The ability to overclock ECC RDIMMs is the result of a deliberate strategy by AMD and its partners. It's a confluence of a unified memory controller architecture across Ryzen, Threadripper, and EPYC; AMD's strategic decision to unlock PRO platforms; robust motherboard engineering with massive power delivery systems; and memory vendors creating a new class of specialized, overclockable ECC products with EXPO profiles.

2. Foundational Tech: DDR5 ECC RDIMM Explained

2.1 What is ECC?

Error-Correcting Code memory uses an extra chip to detect and fix single-bit data errors on the fly. This is crucial for workstation tasks where data integrity is non-negotiable. It's important to distinguish between On-Die ECC (present on all DDR5) and the full, side-band ECC our modules use, which protects data across the entire bus to the CPU.

2.2 The "Registered" in RDIMM

A Registered DIMM (RDIMM) has a Register Clock Driver (RCD) chip that acts as a buffer between the memory controller and the DRAM chips. This reduces the electrical load on the controller, allowing the system to support massive amounts of RAM (up to 2TB on this platform!) at stable speeds.

2.3 The Historical Conflict and Modern Solutions

Historically, the very features that make ECC RDIMMs great for stability—the ECC logic and the RCD buffer—introduced minor performance and latency overheads that made them unsuitable for overclocking. The modern WRX90 platform overcomes this by engineering the entire system (CPU memory controller, motherboard power delivery, and the RDIMMs themselves) to such a high standard that it can achieve massive overclocks, delivering performance that vastly exceeds the minor inherent overheads. You get the best of both worlds: extreme speed and uncompromised data integrity.

3. Anatomy of a Powerhouse Platform

3.1 The Processor: AMD Ryzen Threadripper PRO 7955WX

The heart of the system is the 16-core, 32-thread 7955WX. Built on the "Zen 4" architecture, it boasts a 350W TDP, a powerful eight-channel DDR5 memory interface, and most importantly, an unlocked multiplier, which is AMD's explicit invitation to performance tune this professional-grade CPU.

3.2 The Motherboard: The WRX90 Command Center

The motherboard is the foundation for a stable overclock. Models like the ASUS Pro WS WRX90E-SAGE SE feature massive 32+3+3+3 power stage designs, while the ASRock WRX90 WS EVO uses an 18+3+3 layout. These overbuilt VRMs, cooled by large heatsinks and active fans, are essential for providing clean, stable power far beyond the needs of stock operation. Keeping the BIOS updated with the latest AMD AGESA code is also critical for memory compatibility and stability.

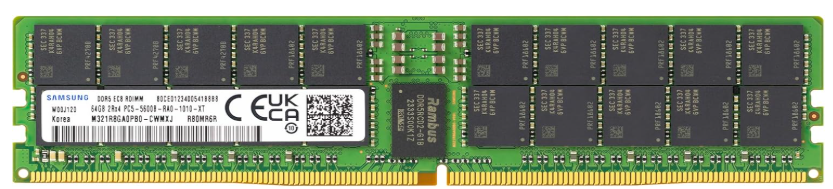

3.3 The Memory: Samsung 5600MT/s DDR5 ECC RDIMM

These server-grade modules operate at a JEDEC-standard 5600 MT/s with 1.1V. The underlying Samsung DRAM dies are known to be capable performers that respond well to voltage increases. A common starting point for manual tuning is around 1.35V for both VDD and VDDQ, which provides the necessary headroom for higher frequencies.

4. The 7955WX Anomaly: It's All About the Fabric

4.1 The Bandwidth Bottleneck

Here's a critical insight for the 16-core 7955WX: the primary performance bottleneck isn't the memory speed (MCLK), but the interconnect bandwidth between the memory controller and the CPU cores. This interconnect is the Infinity Fabric (FCLK).

Because the 7955WX has only two Core Complex Dies (CCDs) but the full eight-channel memory controller, the memory can deliver data faster than the interconnect can transport it. Empirical benchmarks from sources like PassMark confirm this, showing the 7955WX has lower memory bandwidth (~102 GB/s) than higher-core-count models on the same platform. This aligns perfectly with the calculated theoretical interconnect bandwidth limit of ~115 GB/s. This data strongly implies that for the 7955WX, increasing FCLK speed will yield greater performance gains than simply pushing memory frequency alone.

5. The Overclocking Regimen

5.1 Preparation is Key

1. Update your motherboard BIOS and AMD Chipset Drivers.
2. Load "Optimized Defaults" in your BIOS to start fresh.
3. Run baseline benchmarks (like AIDA64 Cache & Memory) to measure stock performance.
4. Verify stock stability with a short stress test (e.g., Prime95 Blend for 30 mins).

5.2 Phase 1: Easy Mode with AMD EXPO

If your memory kit supports it, enabling AMD EXPO in the BIOS is the simplest way to get a manufacturer-validated overclock. It's a one-click performance boost.

5.3 Phase 2 & 3: Manual Tuning

For those who want to push further, manual tuning is the next step. This involves a careful, iterative process of adjusting frequencies, voltages, and timings.

6. Advanced Tuning & Synergy

6.1 The True Performance Lever: Infinity Fabric (FCLK)

As established, FCLK is king on the 7955WX. The goal is to run the memory controller clock (UCLK) in a 1:1 ratio with the memory clock (MCLK), and then push the FCLK as high as possible. Stable FCLK speeds of 2100-2200 MHz are reportedly achievable. This requires careful tuning in the BIOS, often needing small increases in CPU VSOC voltage (e.g., to 1.25V - 1.27V) to maintain stability. Remember to stay below the 1.30V daily-use ceiling for VSOC to protect the CPU long-term.

6.2 Secondary and Tertiary Timings

Once your primary timings are stable, you can eke out more performance by tuning secondary timings. The two most impactful are tRFC (Refresh Cycle Time) and tREFI (Refresh Interval). Lowering tRFC and raising tREFI can reduce memory idle time and improve performance, but aggressive settings are very sensitive to temperature and can easily cause instability. Start with community-recommended "safe" values for your memory die type and test meticulously.

6.3 CPU Tuning Synergy: PBO and Curve Optimizer

After your memory and fabric are fully stable, you can unlock more CPU performance. Using AMD's Precision Boost Overdrive (PBO) to raise power limits and Curve Optimizer to apply a per-core negative voltage offset can significantly improve CPU boost clocks. Applying a moderate all-core negative offset (e.g., -15) and a small boost clock override (e.g., +200 MHz) can yield impressive gains. Crucially, perform these CPU adjustments *after* memory tuning is complete to simplify troubleshooting.

7. Interactive Overclocking Calculator

8. The Gauntlet: Stability Validation

8.1 The Right Tools for the Job

An overclock is worthless if it's not stable. A comprehensive testing protocol is mandatory. We've categorized the best tools based on their strengths.

8.2 The ECC Advantage

Here's where ECC memory becomes a superpower for overclocking. It doesn't just correct single-bit errors; it reports them to the OS. An unstable overclock on non-ECC RAM can cause silent data corruption that you might not notice until it's too late. With ECC, you can check the Windows Event Viewer (for WHEA-Logger events) or Linux `dmesg` log for these corrected errors. The appearance of even a single corrected error is a definitive sign that your overclock is on the edge of instability. This allows you to aim for a much higher standard: not just "no crashes," but "zero corrected errors," which provides a crucial margin of safety against silent data corruption.

8.3 The Overlooked Imperative: Cooling

DDR5 RDIMMs, especially in a fully populated 8-channel setup, run HOT. User reports indicate temperatures can easily reach 85-95°C under load, the maximum operating temperature for many modules. This is because components like the on-board Power Management IC (PMIC) are additional heat sources. For any serious overclock, active memory cooling is mandatory. Mount fans to blow air directly across the DIMMs and use a tool like HWiNFO64 to monitor temperatures, aiming to keep them below 55°C under maximum load to prevent temperature-induced instability.

9. Visualizing the Performance Gains

10. Analysis & Final Recommendations

10.1 Quantifying Your Gains

Once you have a fully stable overclock, re-run your baseline benchmarks like the AIDA64 Cache & Memory test. Compare the new read/write/copy speeds and latency figures to your stock results. More importantly, test your real-world applications—render a scene, compile a project, run a simulation. The reduction in time-to-completion is the true measure of your success.

10.2 Finding the "Sweet Spot"

Overclocking is a game of diminishing returns. The goal for a workstation isn't a world-record benchmark, but a stable "sweet spot" that provides a tangible performance boost with plenty of thermal and stability headroom. It's often wise to dial back slightly from your absolute maximum stable settings. For example, running at 6000 MT/s with rock-solid stability is far better than chasing 6200 MT/s on the razor's edge. This ensures long-term reliability and peace of mind.

The journey to a perfectly tuned workstation is one of patience and methodical testing. The goal is not a world-record benchmark, but a tangible improvement in your daily workloads with rock-solid stability.
