The Anatomy of a High-Performance Cable

Conductor and Signal Integrity

The ability of a cable to transmit high-speed data without error is known as signal integrity. This is primarily influenced by wire gauge (AWG) and shielding against electromagnetic interference (EMI).

Most quality internal cables use 30 AWG wire, which balances flexibility and electrical performance for typical lengths of 0.5 to 1 meter. For longer runs, thicker gauges like 28 or 26 AWG are used to reduce signal loss.

Physical Construction and Durability

The most common construction involves bundling multiple thin, flat "ribbon cables." This design is favored for its flexibility and minimal profile, which is critical for reducing airflow obstruction inside a dense server chassis. However, these ribbons are delicate and require protection.

A well-engineered cable is a system of features designed for reliability. Look for a woven mesh sheath for abrasion resistance, dedicated strain relief (often acetate cloth tape) at the connector base, and robust latching mechanisms (ideally stainless steel). Quality connectors also feature easy-grip treads to aid installation in tight spaces.

The Importance of Impedance Matching

High-speed data protocols like SAS and SATA require a precisely controlled electrical environment. The SAS specification mandates a characteristic impedance of 100 Ohms for the entire signal path. Any deviation causes signal reflections—where part of the signal bounces back to the source—corrupting data and causing link errors.

Reputable manufacturers use quality materials and precise engineering to maintain this 100 Ohm standard consistently. This is an invisible but critical feature that separates reliable cables from those that cause intermittent, hard-to-diagnose data errors.

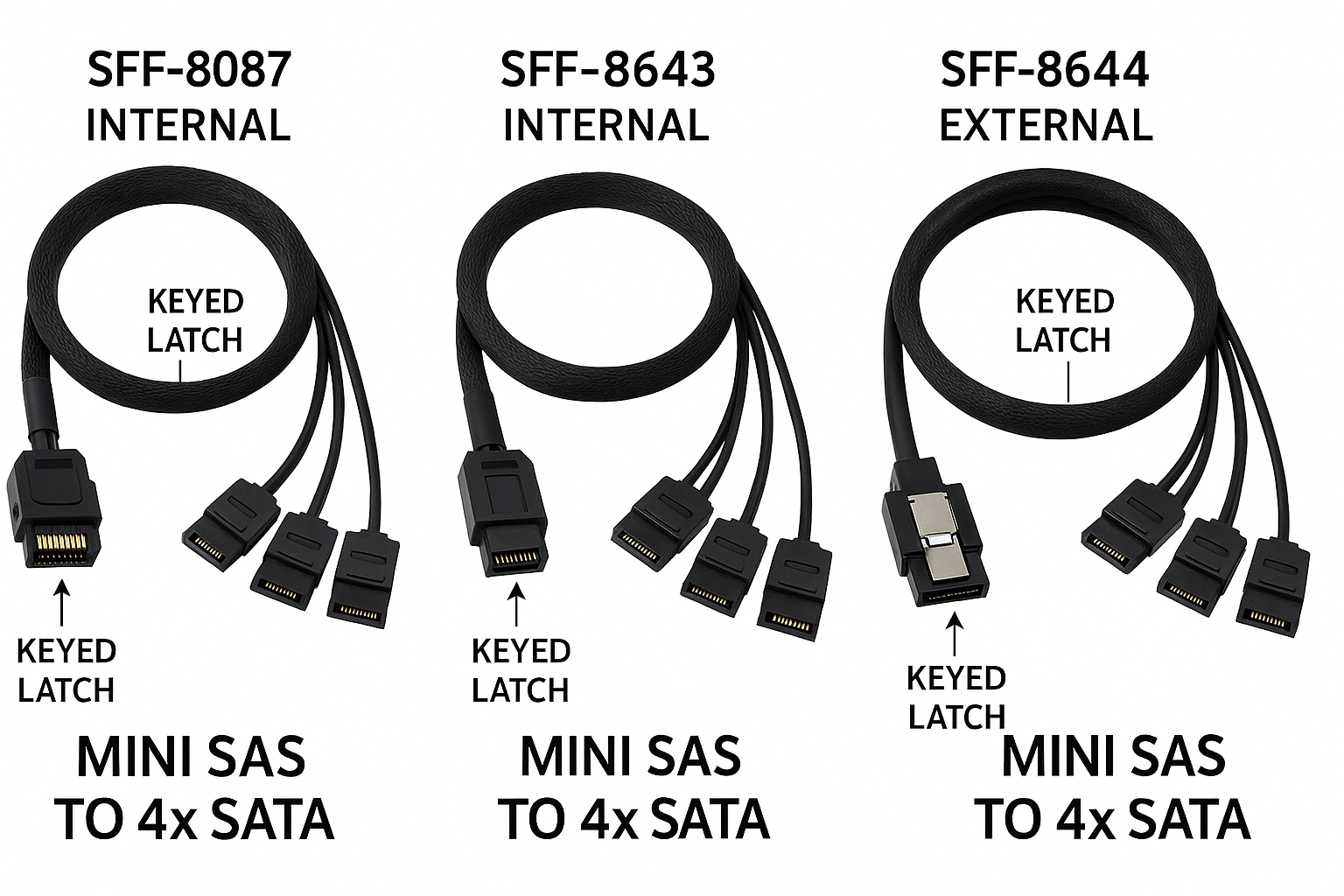

Navigating the Standards: SFF-8087 vs. SFF-8643

The choice of cable is dictated by the physical connector on your host controller. Two standards dominate: the older SFF-8087 (6 Gbps) and the modern SFF-8643 (12 Gbps).

Interoperability and Performance Considerations

The SAS standards were designed with backward compatibility in mind. A modern 12 Gbps SFF-8643 controller can connect to an older 6 Gbps SFF-8087 backplane using a hybrid cable. However, when such a connection is made, the entire link will negotiate down to the speed of the slowest component in the chain.

This ensures compatibility but prevents the system from realizing the full performance potential of the controller. While an SFF-8087 cable may be "good enough" for today's HDDs, selecting it for a new build is a form of planned obsolescence.

For any new system build, standardizing on SFF-8643 is the most prudent long-term strategy. It future-proofs your storage infrastructure for seamless upgrades to faster SSDs without replacing the HBA and cabling.

Market Analysis: Understanding Brand Tiers

Brand reputation is often a reliable proxy for manufacturing consistency and quality control. We categorize the market into three tiers to guide your selection.

Recommendations & Top Picks for 2025

Our recommendations focus on Tier 2 brands, which represent the optimal intersection of enterprise-grade features, proven reliability, and prosumer accessibility.

Implementation Best Practices

Conclusion: The Cable as a System Component

The internal Mini SAS to SATA breakout cable is far more than a simple accessory; it is a foundational component of a reliable storage system. The difference between a high-quality cable and a generic alternative lies in a commitment to engineering principles: consistent impedance matching, robust shielding, and durable mechanical construction.

Investing a small premium in a reputable, well-constructed cable from a Tier 2 brand like Cable Matters or StarTech.com is one of the most effective forms of insurance against the intermittent, frustrating, and potentially catastrophic failures that can arise from a compromised physical data layer. For any system where data integrity is a priority, the quality of the cable should be considered as seriously as the choice of controller or drives.
