High-performance graphics processing units dictate desktop computer architecture, thermal management, and mechanical engineering layouts. The thermal design power of processors such as the NVIDIA GeForce RTX 4090 and the AMD Radeon RX 7900 XTX exceeds the four hundred watt threshold. Add-In Board partners manufacture massive heatsink assemblies to dissipate this thermal load. These cooling solutions feature expansive vapor chambers, dense arrays of thick copper heat pipes, and triple-fan configurations occupying three to four PCIe slots in width.

Graphics cards regularly exceed physical lengths of three hundred and thirty millimeters and overall weights ranging between two and three kilograms. This mass exposes a mechanical vulnerability within the Advanced Technology eXtended specification. The standard PCIe x16 slot and the standard rear input output bracket lack the structural rigidity required to suspend three kilograms of metal and silicon in a horizontal orientation. The physical result is GPU sag, a gradual macroscopic deflection of the graphics card downward at its unsupported distal end.

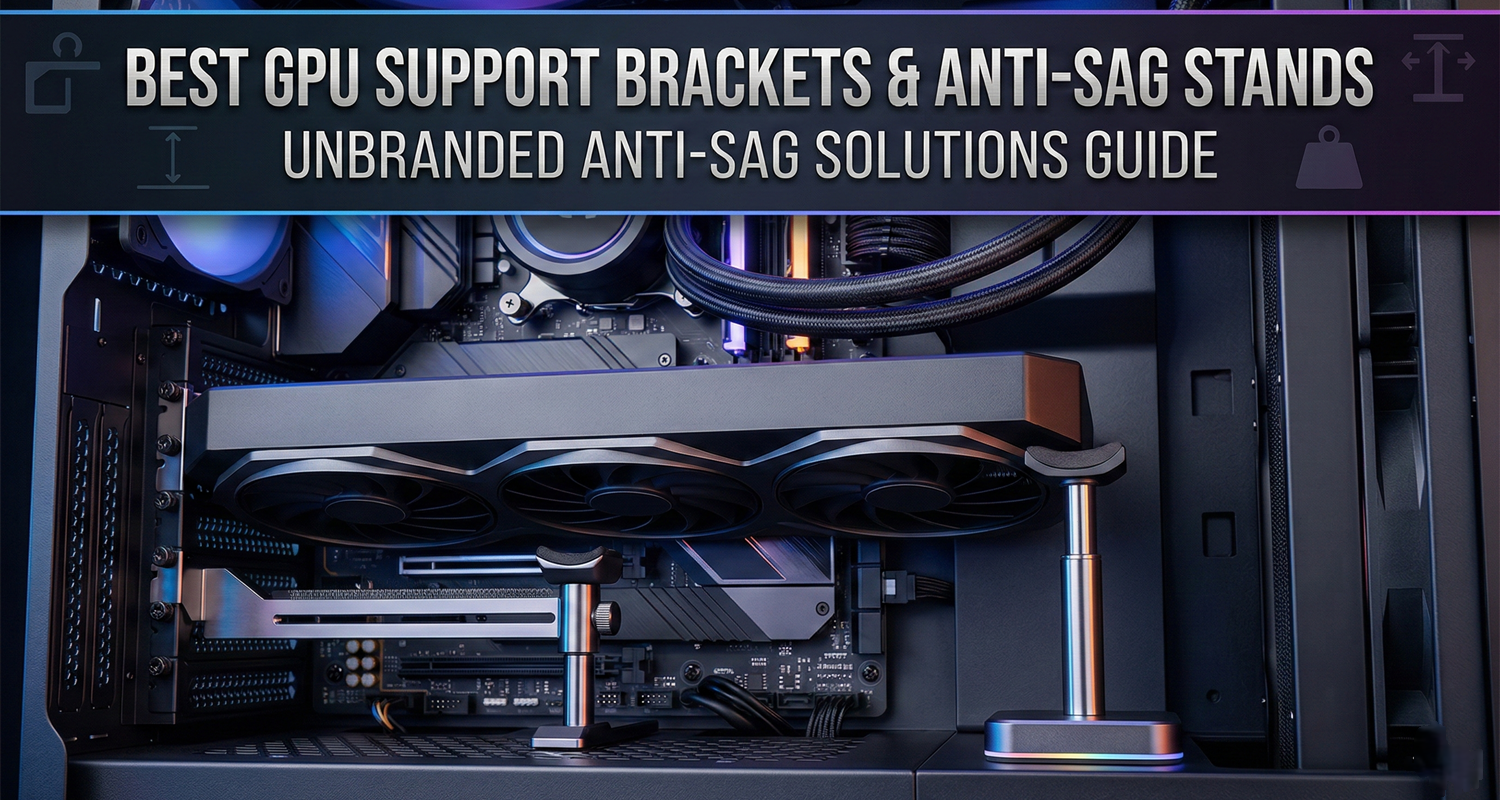

This document assesses graphics card sag and the mechanical support solutions designed to mitigate it. The evaluation covers support brackets utilizing magnetic bases, non-slip rubber interfaces, and telescopic adjustment mechanisms. The analysis reviews addressable RGB brackets, minimalist aluminum pillars, and regional market options.

In a standard chassis configuration, a graphics card acts mechanically as a cantilever beam. It anchors at two points. The first is the electrical PCIe slot on the motherboard. The second is the physical rear PCIe expansion slots of the chassis frame. The center of mass of a heavy graphics card is located far from these two anchor points. This creates a bending moment acting upon the fulcrum of the motherboard slot.

Constant downward gravitational force causes mechanical creep in the printed circuit board of the graphics card and the motherboard plastic PCIe slot. The weight pulls the distal end of the card downward. This strains the solder joints connecting the PCIe slot to the motherboard substrate.

Deformation causes thermal interface degradation. The printed circuit board of the graphics card warps while the metallic heatsink block remains rigid. Differential bending causes separations between the thermal pads and the underlying memory modules. A separation introduces an insulating air gap, breaking the thermal bridge and leading to localized overheating and aggressive thermal throttling.

Bending introduces micro-fracturing within the Ball Grid Array. The graphics processing unit die and surrounding memory modules solder to the printed circuit board via microscopic solder balls. Severe board warping introduces shear stress across these solder joints. Thermal cycling combined with mechanical shear stress leads to micro-fractures in the connections. This manifests as graphical artifacting and system instability.

A sagging graphics card suffers from acoustic resonance. The component is loose at its distal end. Cooling fans generate complex vibrational frequencies. Without a firm mechanical anchor, these vibrations travel through the length of the card and directly into the motherboard PCIe slot. Hardware operators document rhythmic creaking noises under heavy computational loads. The noise ceases when the distal end of the graphics card is manually supported.

Motherboard marketing materials frequently highlight steel-reinforced PCIe slots. These metal shields solder directly to the motherboard substrate. They successfully prevent the plastic slot from ripping out under extreme shear stress during shipping or sudden impacts. However, they do absolutely nothing to stop the graphics card itself from bending.

The printed circuit board of the graphics card remains exposed to gravitational pull. A reinforced slot holds the connection point firm, leaving the rest of the three-kilogram card to droop. Relying solely on a reinforced motherboard slot creates a false sense of security. The slot will survive, but the graphics card will warp. External mechanical support placed at the far edge of the card remains a strict requirement regardless of motherboard tier.

Manufacturers select materials based on production costs and required structural rigidity. Plastic brackets exist at the lowest price points but suffer from long-term creep under sustained loads. Heat cycles inside a computer case accelerate plastic deformation, causing the bracket to slowly lose its height over several years.

AL6060 aluminum dominates the mid-range and upper-tier minimalist market. It offers excellent rigidity and low weight. Aluminum does not warp under the standard thermal conditions of a desktop chassis. Premium models utilize zinc alloy. Zinc alloy provides immense density, feeling significantly heavier in the hand and resisting all microscopic deflections. Tempered glass serves primarily aesthetic purposes. It requires exceptionally thick cuts to provide actual structural support without shattering under pressure.

The mechanical effectiveness of vertical pillars relies upon physical interfaces at the chassis floor and the graphics card shroud. Manufacturers integrate Neodymium alloy magnets into the base of the stand to prevent tipping or sliding. Solid state electronics remain unaffected by static magnetic fields. NAND flash memory relies on trapping electrical charges. A static magnetic field emitted by a base magnet cannot alter solid state data. Silicon logic gates within the graphics processing unit are immune to static magnetic fields.

The uppermost contact point of the support bracket presses against the underside of the graphics card cooler. Manufacturers coat these points in non-slip rubber, dense foam, or silicone pads. These pads provide scratch prevention for anodized aluminum or plastic shrouds. The elastomer acts as a mechanical low-pass filter for vibration isolation. It physically absorbs high-frequency mechanical vibrations generated by cooling fans, preventing transfer down the rigid metal pillar.

Magnetic bases require a ferrous steel mounting surface. Chassis designs featuring plastic power supply shrouds or glass floors cannot grip magnets. Secondary market solutions feature heavy-duty adhesive mounting options. Products utilize double-sided adhesives to secure the base to plastic shrouds.

System builders can bypass horizontal sag completely by utilizing a vertical mounting bracket and a high-speed PCIe riser cable. This orientation hangs the graphics card vertically, positioning it parallel to the motherboard. Gravitational force pulls down along the strongest vertical axis of the metal input output shield rather than pulling across the flat printed circuit board. This entirely eliminates bending stress.

This method requires specific chassis compatibility. The case must offer vertical expansion slots or support an aftermarket conversion kit. Builders must also account for thermal airflow. Placing a vertical graphics card too close to a solid glass side panel restricts fan intake, leading to increased operating temperatures. A well-implemented vertical mount completely negates the need for anti-sag pillars.

The physical expansion of graphics processing units makes the support bracket a required structural component. Suspending a massive weight horizontally causes printed circuit board deformation and degradation of the motherboard data slot. A vertical telescopic pillar utilizing a magnetic base and a rubber contact pad provides structural rigidity. The magnetic base ensures stability against chassis movement. The rubber pad protects the graphics card shroud from scratching and absorbs harmonic vibrations. The deployment of a graphics card support bracket is a required preventative maintenance measure. It preserves solder joints, maintains thermal interfaces, and guarantees operational longevity of the hardware.
